MA-506 MHz RANGE CRYSTAL UNIT

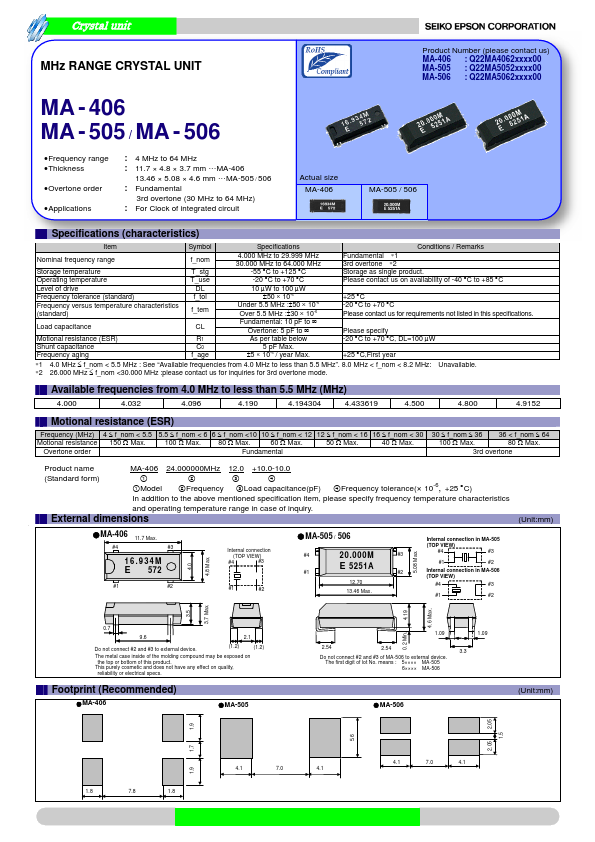

Crystal unit MHz RANGE CRYSTAL UNIT Product Number (please contact us) MA-406 : Q22MA4062xxxx00 MA-505 : Q22MA5052xxxx00 MA-506 : Q22MA5062xxxx00 MA - 406 MA - 505 / MA - 506 Frequency range Thickness Overtone order Applications : 4 MHz to 64 MHz : 11.7 × 4.8 × 3.7 mm MA-406 : 13.46 × 5.08 × 4.6 mm MA-505 / 506 : Fundamental 3rd overtone (30 MHz to 64 MHz) : For Clock of integrated circuit Actual size MA-406 MA-505 / 506 Specifications (c.

MA-505_EpsonCompany.pdf

MA-506 Datasheet Preview — This datasheet PDF includes multiple part numbers: MA-506, MA-505. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MA-506, MA-505

Manufacturer:

Epson Company

File Size:

391.26 KB

Description:

Mhz range crystal unit.

Note:

This datasheet PDF includes multiple part numbers: MA-506, MA-505.
Please refer to the document for exact specifications by model.
