SED1530DF, SED - DOT MATRIX LCD CONTROLLER DRIVER

Epson Company

Datasheet Details

Part number	SED1530DF, SED
Manufacturer	Epson Company
File Size	176.00 KB
Description	DOT MATRIX LCD CONTROLLER DRIVER
Datasheet	SED-1530.pdf
Note	This datasheet PDF includes multiple part numbers: SED1530DF, SED. Please refer to the document for exact specifications by model.

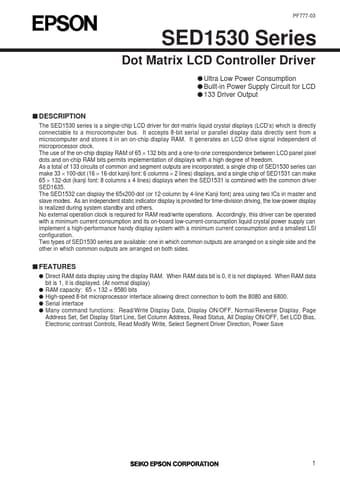

The SED1530 series is a single-chip LCD driver for dot-matrix liquid crystal displays (LCD’s) which is directly connectable to a microcomputer bus.

q Direct RAM data display using the display RAM. When RAM data bit is 0, it is not displayed. When RAM data bit is 1, it is displayed. (At normal display) q RAM capacity: 65 × 132 = 8580 bits q High-speed 8-bit microprocessor interface allowing direct connection to both the 8080 and 6800. q Serial interface q Many command functions: Read/Write Display Data, Display ON/OFF, Normal/Reverse Display, Page Address Set, Set Display Start Line, Set Column Address, Read Status, All Display ON/OFF, Set L.
