SG-51P - Crystal Oscillators

Product Overview

Epson Company

Datasheet Details

Part number	SG-51P
Manufacturer	Epson Company
File Size	127.34 KB
Description	Crystal Oscillators
Datasheet	SG-51P Datasheet

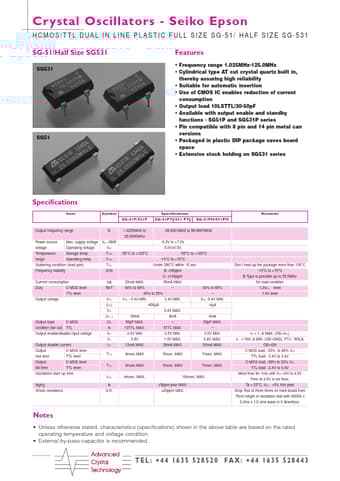

Additional preview pages of the SG-51P datasheet.

Product details

Description

Stock Number 1.8432 3.6864 4.00 4.9152 5.00 5.00 6.00 6.144 7.3728 8.00 9.8304 10.00 12.00 14.31818 14.7456 16.00 16.257 20.00 20.2752 23.587 24.00 25.00 25.00 25.175 28.322 32.00 33.33 36.00 40.00 42.00 44.90 48.00 50.00 50.00 60.00 64.00 66.00 66.00 66.66 SG531P SG531P SG531P SG531P SG531 SG531P SG531 SG531P SG531P SG531P SG531P SG531P SG531P SG531P SG531P SG531P SG531P SG531P SG531P SG531P SG531P SG531 SG531P SG531 SG531T SG531PH SG531PH SG531PH SG531PH SG531H SG531H SG531H SG531 SG531PH SG53

Features

Frequency range 1.025MHz-125.0MHz.
Cylindrical type AT cut crystal quartz built in, thereby assuring high reliability.
Suitable for automatic insertion.
Use of CMOS IC enables reduction of current consumption.
Output load 10LSTTL/30-50pF.
Available with output enable and standby functions - SG51P and SG531P series.
Pin compatible with 8 pin and 14 pin metal can versions.
Packaged in plastic DIP package saves board space.
