TQS-472BA-7R Datasheet - Epson ToYoCom

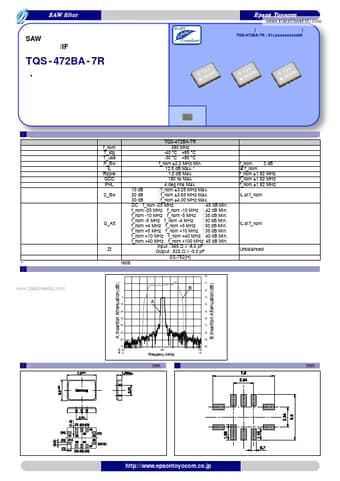

TQS-472BA-7R SAW FILTER

SAW filter Epson Toyocom ( ) TQS-472BA-7R : X1Lxxxxxxxxxx00 SAW /IF TQS - 472BA - 7R f_nom T_stg T_use P_Bw IL Ripple GDD PHL S_Bw G_Att Zt 1608 TQS-472BA-7R 380 MHz -40 °C +85 °C -30 °C +85 °C f_nom ±2.2 MHz Min. 12.5 dB Max. 1.2 dB Max. 180 ns Max. 4 deg rms Max. 10 dB : f_nom ±3.25 MHz Max. 20 dB : f_nom ±3.65 MHz Max. 30 dB : f_nom ±4.00 MHz Max. DC f_nom -25 MHz : 45 dB Min. f_nom -25 MHz f_nom -10 MHz : 42 dB Min. f_nom -10 MHz f_nom -5 MHz : 35 dB Min. f_nom -.

TQS-472BA-7R Datasheet (374.93 KB)
