S1D13503 - LCD Controller

Product Overview

Epson

📥 Download Datasheet

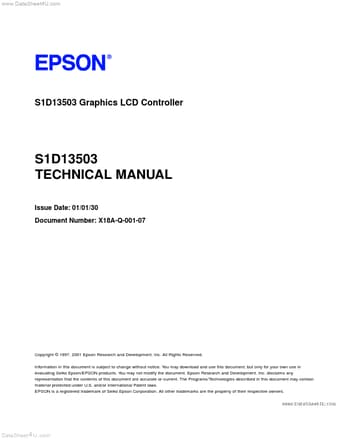

S1D13503 LCD Controller by Epson - Datasheet Preview — Datasheet preview – S1D13503

Datasheet Details

Part number	S1D13503
Manufacturer	Epson
File Size	3.37 MB
Description	LCD Controller
Datasheet	S1D13503 Datasheet
Additional preview pages of the S1D13503 datasheet.

Product details

Description

The S1D13503 is a dot matrix graphic LCD controller supporting resolutions up to 1024x1024.

Features

CPU Interface Display Support.
Pin compatible with the S1D13502.
16-bit 16 MHz MC68xxx MPU interface.
8/16-bit MPU interface controlled by a READY (or WAIT#) signal.
Single-panel, single-drive passive display. Dual-panel, dual-drive passive display.
Maximum number of vertical lines: 1,024 lines (single-panel, single-drive display). 2,048 lines (dual-panel, dual-drive display).
Option to use built-in index register or direct-mapping t.
