1N5397G General Purpose Rectifiers

1N5397G Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified PRIMARY CHARACTERISTICS IF 1.5A VRRM 50~1000V IFSM 50A VF 1.1V TJ max 150°C Mechanical Date ‧Cases: DO-15 ‧Case Material: Molded Plastic. UL Flammabi

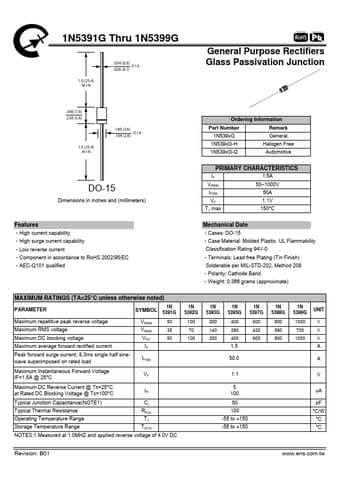

1N5391G-Eris.pdf

1N5397G Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N5397G, 1N5391G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N5397G, 1N5391G

Manufacturer:

Eris

File Size:

155.45 KB

Description:

General purpose rectifiers.

Note:

This datasheet PDF includes multiple part numbers: 1N5397G, 1N5391G.
Please refer to the document for exact specifications by model.
