2EZ11D5

2W Zener Diodes

2EZ11D5 Features

* ‧Glass passivated chip ‧Low leakage ‧Built-in strain relief ‧Low inductance ‧High peak reverse power dissipation ‧Lead (Pb)-free component ‧For use in stabilizing and clipping circuits with high power rating 2W Zener Diode Ordering Information Part Number Remark 2EZxxxD5 General 2EZxxxD5-H H

2EZ11D5 Datasheet (164.79 KB)

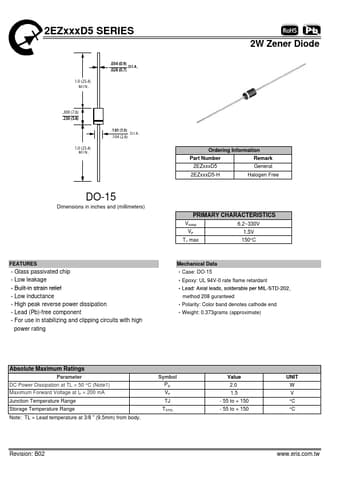

Preview of 2EZ11D5 PDF

Datasheet Details

Part number:

2EZ11D5

Manufacturer:

Eris

File Size:

164.79 KB

Description:

2w zener diodes.
2EZxxxD5 SERIES 1.0 (25.4) MIN. .034 (0.9) DIA. .028 (0.7) .300 (7.6) .230 (5.8) 1.0 (25.4) MIN. .140 (3.6) .104 (2.6) D I A . DO-15 Dimensions i.
