3EZ28D5

3W Zener Diodes

3EZ28D5 Features

* ‧Glass passivated chip ‧Low leakage ‧Built-in strain relief ‧Low inductance ‧High peak reverse power dissipation ‧Lead (Pb)-free component ‧For use in stabilizing and clipping circuits with high power rating 3W Zener Diode Ordering Information Part Number Remark 3EZxxxD5 General 3EZxxxD5-H H

3EZ28D5 Datasheet (300.63 KB)

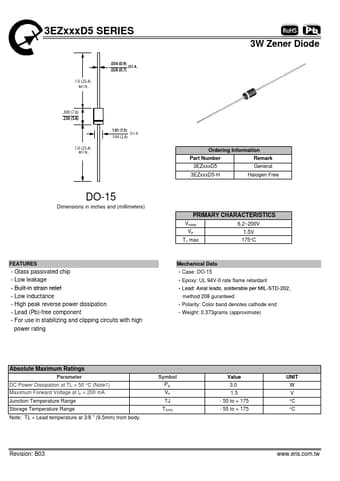

Preview of 3EZ28D5 PDF

Datasheet Details

Part number:

3EZ28D5

Manufacturer:

Eris

File Size:

300.63 KB

Description:

3w zener diodes.
3EZxxxD5 SERIES 1.0 (25.4) MIN. .034 (0.9) DIA. .028 (0.7) .300 (7.6) .230 (5.8) 1.0 (25.4) MIN. .140 (3.6) .104 (2.6) D I A . DO-15 Dimensions i.
