3KP85A, 3KP5.0A Datasheet - Eris

3KP85A Transient Voltage Suppressors

3KP85A Features

* ‧Glass passivated chip ‧3000 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 % ‧Low leakage ‧Uni and Bidirectional unit ‧Excellent clamping capability ‧Very fast response time Mechanical Data ‧Case: Molded plastic ‧Epoxy: UL 94V-0 rate flame retardant ‧Le

3KP5.0A-Eris.pdf

This datasheet PDF includes multiple part numbers: 3KP85A, 3KP5.0A. Please refer to the document for exact specifications by model.

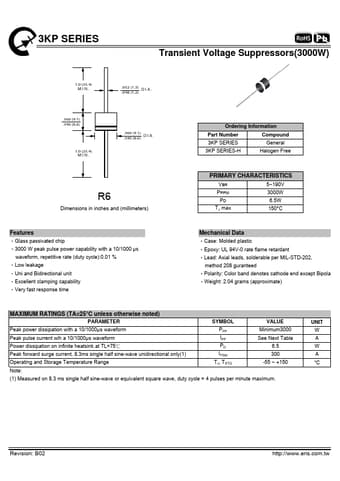

3KP85A Datasheet Preview Page 2 3KP85A Datasheet Preview Page 3

Datasheet Details

Part number:

3KP85A, 3KP5.0A

Manufacturer:

Eris

File Size:

358.02 KB

Description:

Transient voltage suppressors.

Note:

This datasheet PDF includes multiple part numbers: 3KP85A, 3KP5.0A.
Please refer to the document for exact specifications by model.
