5KP5.0CA, 5KP5.0A Datasheet - Eris

5KP5.0CA, 5KP5.0A, Transient Voltage Suppressors

5KP SERIES Transient Voltage Suppressors(5000W) 1.0 (25.4) MIN..052 (1.3) DIA..048 (1.2) .360 (9.1) .340 (8.6) 1.0 (25.4) MIN..360 (9.1) DIA..

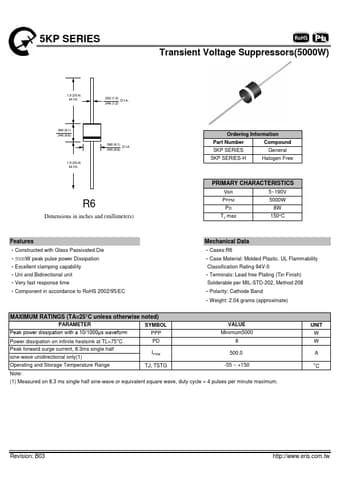

datasheet Preview Page 1 from Datasheet4u.com

5KP5.0A-Eris.pdf

5KP5.0CA Datasheet Preview — This datasheet PDF includes multiple part numbers: 5KP5.0CA, 5KP5.0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

5KP5.0CA, 5KP5.0A

Manufacturer:

Eris

File Size:

345.17 KB

Description:

Transient Voltage Suppressors

Note:

This datasheet PDF includes multiple part numbers: 5KP5.0CA, 5KP5.0A.
Please refer to the document for exact specifications by model.

Features

* ‧Constructed with Glass Passivated Die ‧5000W peak pulse power Dissipation ‧Excellent clamping capability ‧Uni and Bidirectional unit ‧Very fast response time ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases:R6 ‧Case Material: Molded Plastic. UL Flammability Classification Rating
