EBRP10E300CT - Excellent Schottky Barrier Rectifiers

Eris

📥 Download Datasheet

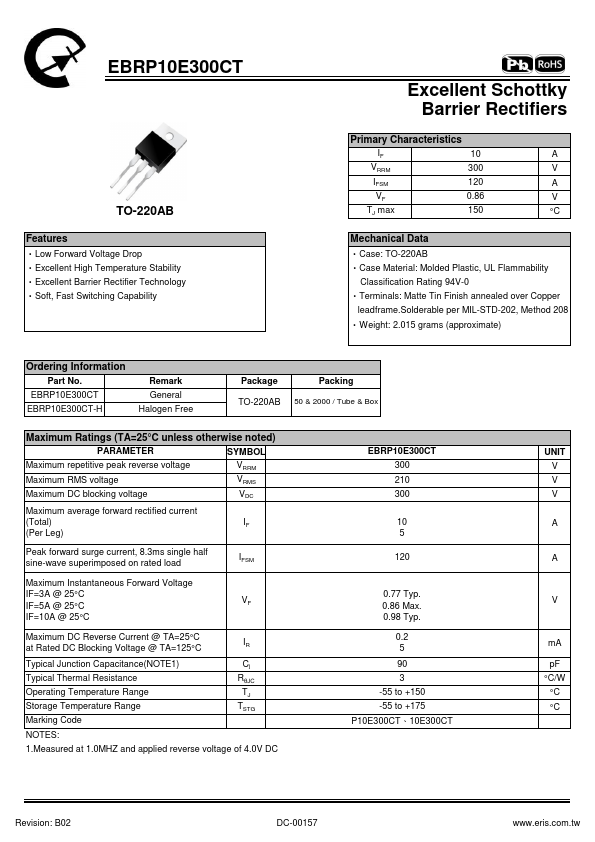

EBRP10E300CT Datasheet Preview — Preview of EBRP10E300CT PDF

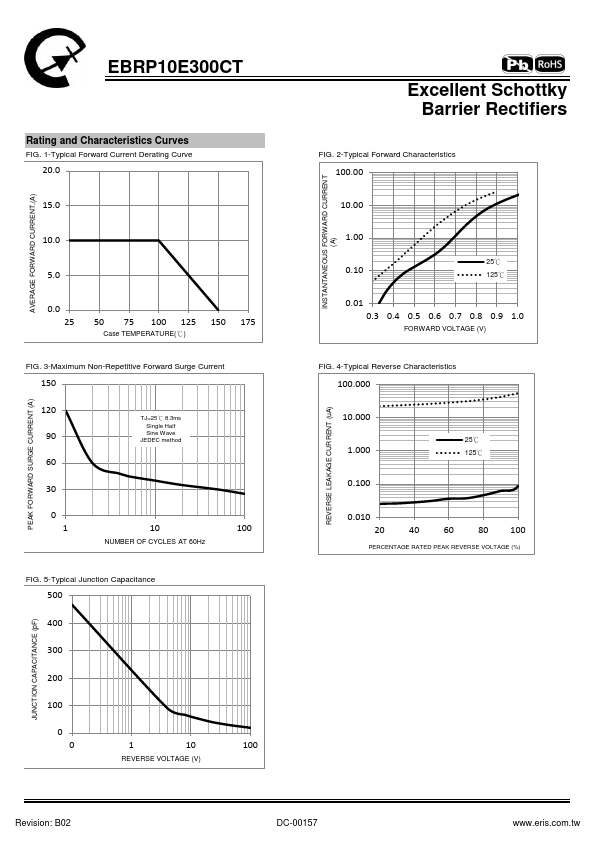

datasheet Preview Page 2

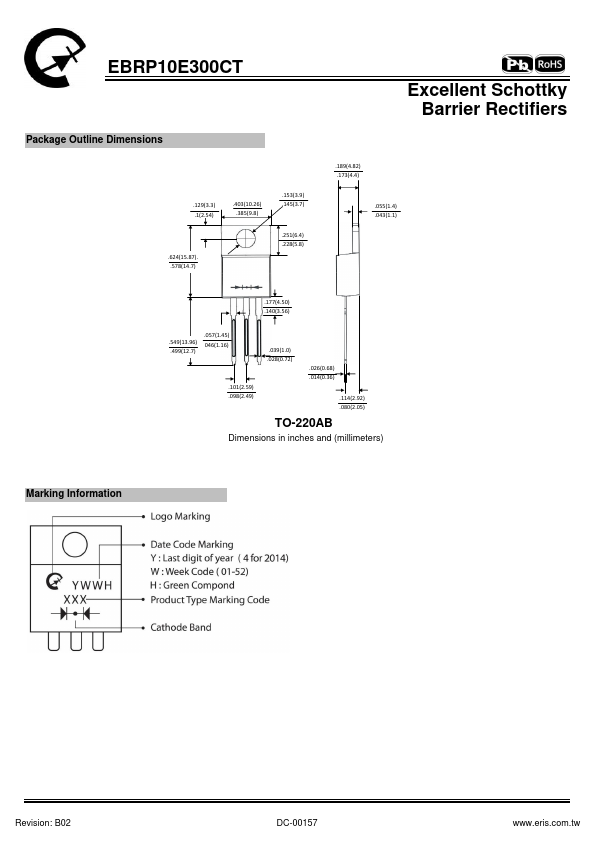

datasheet Preview Page 3

Datasheet Details

Part number	EBRP10E300CT
Manufacturer	Eris
File Size	225.13 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRP10E300CT-Eris.pdf

EBRP10E300CT Product details

Features

‧Low Forward Voltage Drop ‧Excellent High Temperature Stability ‧Excellent Barrier Rectifier Technology ‧Soft, Fast Switching Capability Excellent Schottky Barrier Rectifiers Primary Characteristics IF 10 A VRRM 300 V IFSM 120 A VF 0.86 V TJ max 150 °C Mechanical Data ‧Case: TO-220AB ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 ‧Weight: 2.015 grams (.
