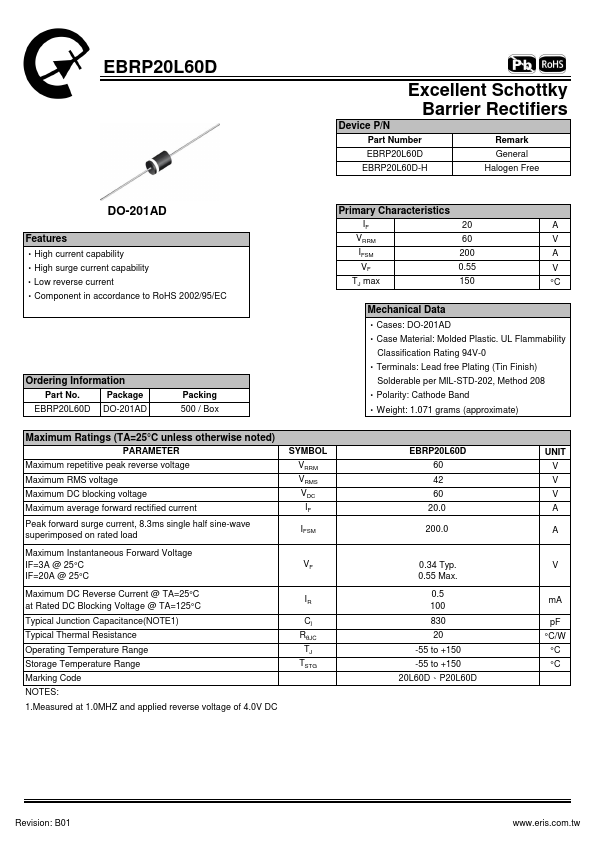

EBRP20L60D
Features
‧High current capability ‧High surge current capability ‧Low reverse current ‧ponent in accordance to Ro HS 2002/95/EC
Ordering Information
Part No.
Package
EBRP20L60D DO-201AD
Packing 500 / Box
Primary Characteristics
VRRM
IFSM
TJ max
°C
Mechanical Data ‧Cases: DO-201AD ‧Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish)
Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 1.071 grams (approximate)
Maximum Ratings (TA=25°C unless otherwise noted) PARAMETER
Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load
SYMBOL VRRM VRMS VDC IF
IFSM
Maximum Instantaneous Forward Voltage
IF=3A @ 25°C
IF=20A @ 25°C
Maximum DC Reverse Current @ TA=25°C at Rated DC Blocking Voltage @...
