EBRP5L200AF - Excellent Schottky Barrier Rectifiers

EBRP5L200AF Description

EBRP5L200AF Excellent Schottky Barrier Rectifiers DO-221AC(SMAF) Primary Characteristics IF 5 A VRRM 200 V IFSM 100 A VF 0.87 V TJ max.

EBRP5L200AF Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Case: DO-221AC(SMAF) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-S

📥 Download Datasheet

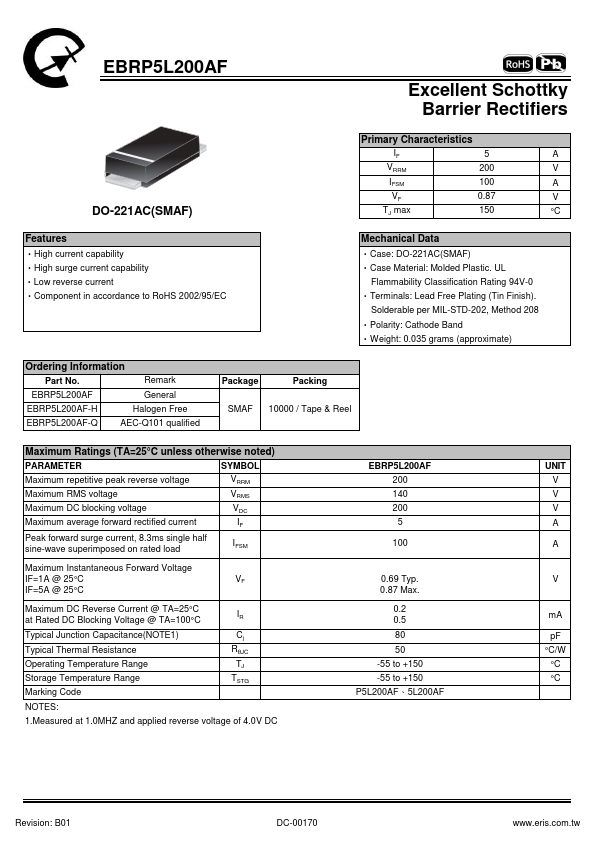

Preview of EBRP5L200AF PDF

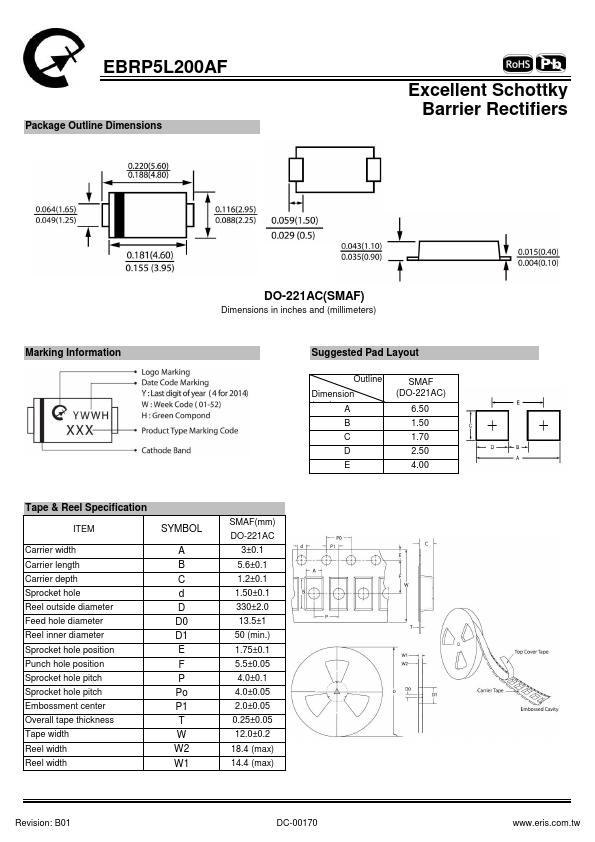

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EBRP5L200AF
Manufacturer
Eris
File Size
357.70 KB
Datasheet
EBRP5L200AF-Eris.pdf
Description
Excellent Schottky Barrier Rectifiers
