EBRP5L200B - Excellent Schottky Barrier Rectifiers

EBRP5L200B Description

EBRP5L200B Excellent Schottky Barrier Rectifiers DO-214AA(SMB) Primary Characteristics IF 5 A VRRM 200 V IFSM 100 A VF 0.87 V TJ max .

EBRP5L200B Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases: DO-214AA(SMB) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-ST

📥 Download Datasheet

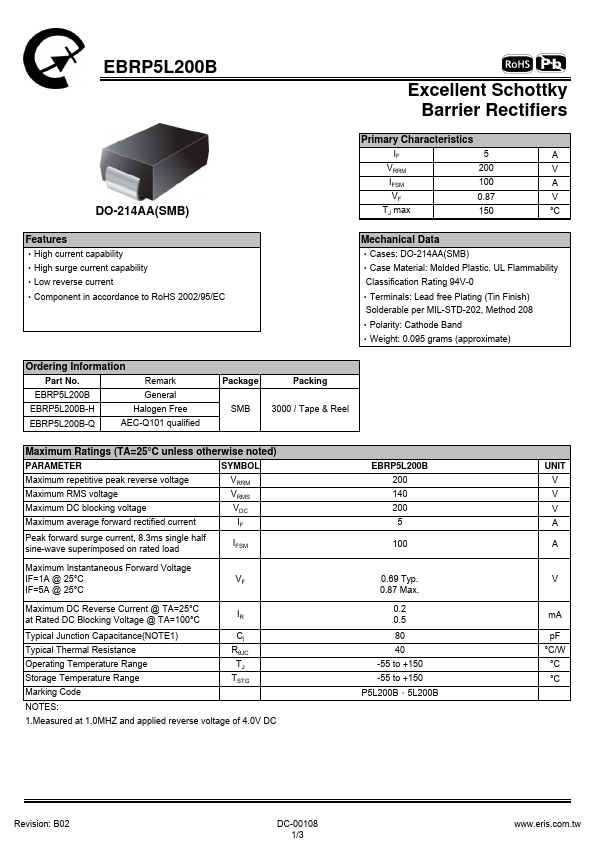

Preview of EBRP5L200B PDF

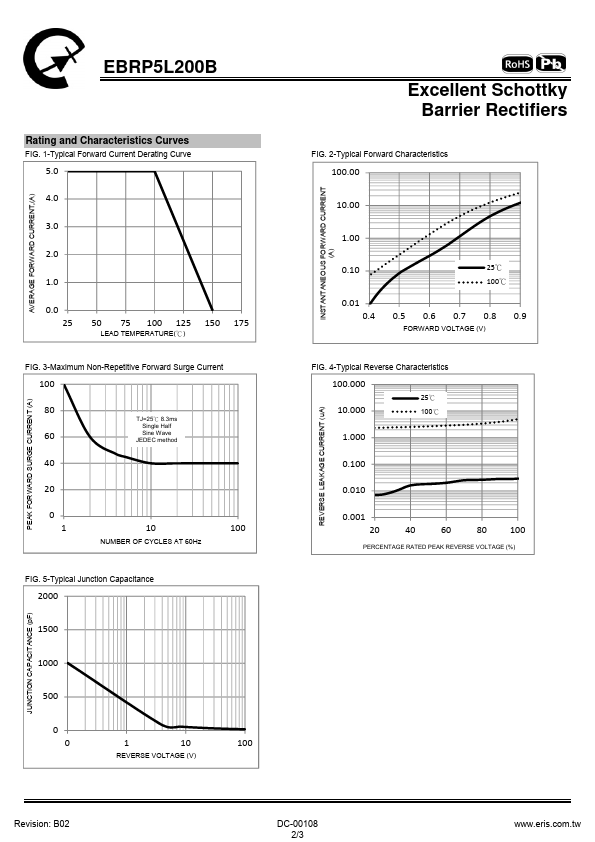

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EBRP5L200B
Manufacturer
Eris
File Size
270.25 KB
Datasheet
EBRP5L200B-Eris.pdf
Description
Excellent Schottky Barrier Rectifiers
