EBRP5L200D - Excellent Schottky Barrier Rectifiers

EBRP5L200D Description

EBRP5L200D Excellent Schottky Barrier Rectifiers DO-201AD Primary Characteristics IF 5 A VRRM 200 V IFSM 100 A VF 0.87 V TJ max 150 .

EBRP5L200D Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases: DO-201AD ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202

📥 Download Datasheet

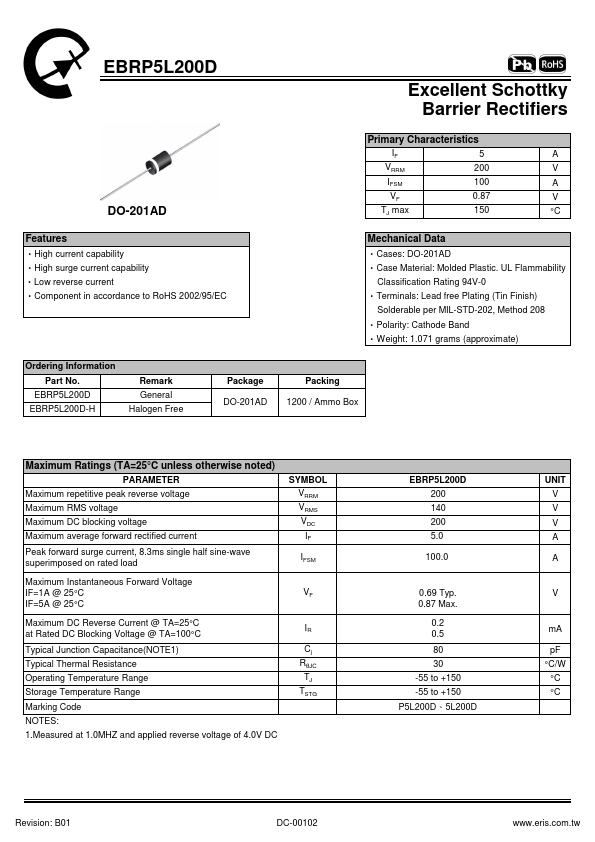

Preview of EBRP5L200D PDF

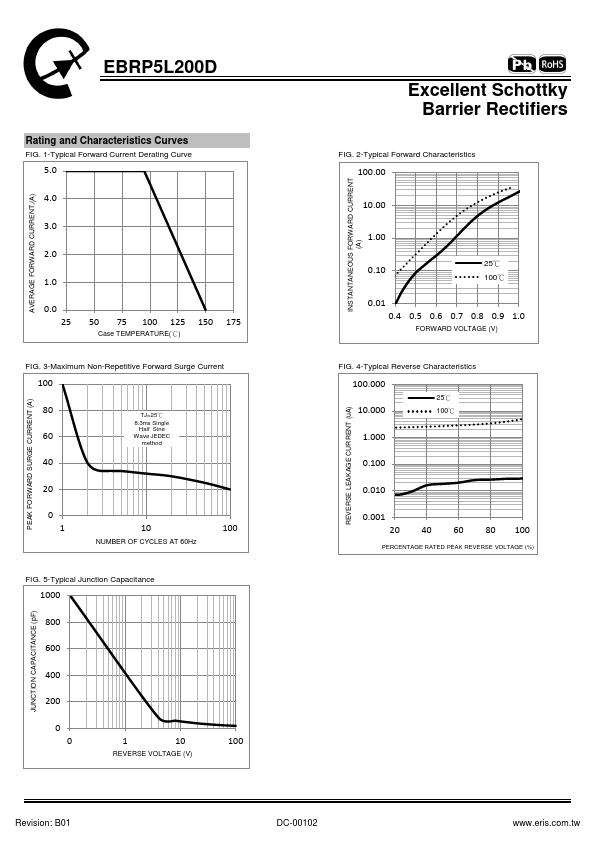

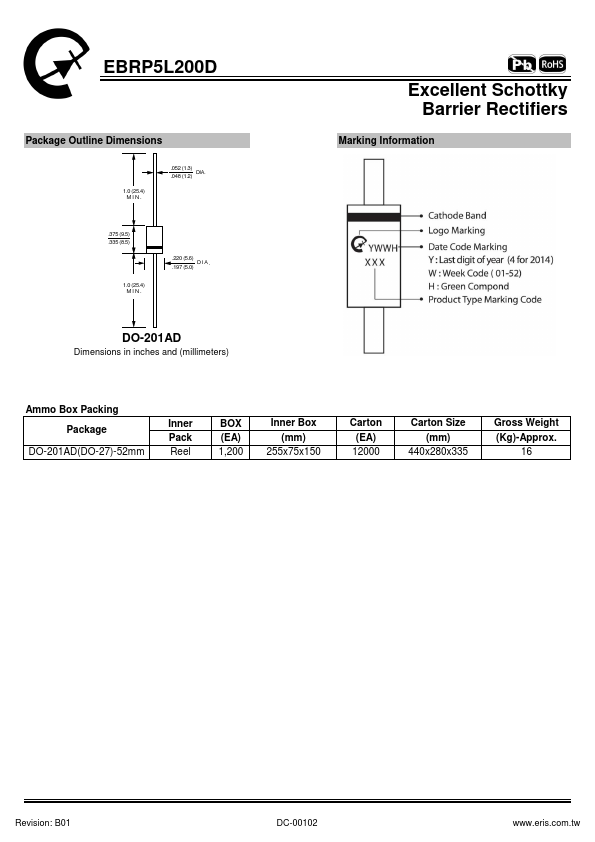

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EBRP5L200D
Manufacturer
Eris
File Size
196.64 KB
Datasheet
EBRP5L200D-Eris.pdf
Description
Excellent Schottky Barrier Rectifiers
