EBRP5L300A - Excellent Schottky Barrier Rectifiers

EBRP5L300A Description

EBRP5L300A Excellent Schottky Barrier Rectifiers DO-214AC(SMA) .

EBRP5L300A Features

* ‧High current capability ‧High surge current capability ‧Low reverse current Ordering Information Part No. EBRP5L300A EBRP5L300A-H EBRP5L300A-Q Remark RoHS Compliant Halogen Free AEC-Q101 qualified Primary Characteristics IF 5 A VRRM 300 V IFSM 100 A VF 0.97 V TJ max 150 °C Mechan

EBRP5L300A Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are represented on Eris website, harmless against all damages.
* No license, express or implied, by estoppels or otherwise, to any intellectual property is granted by this document or by any condu

📥 Download Datasheet

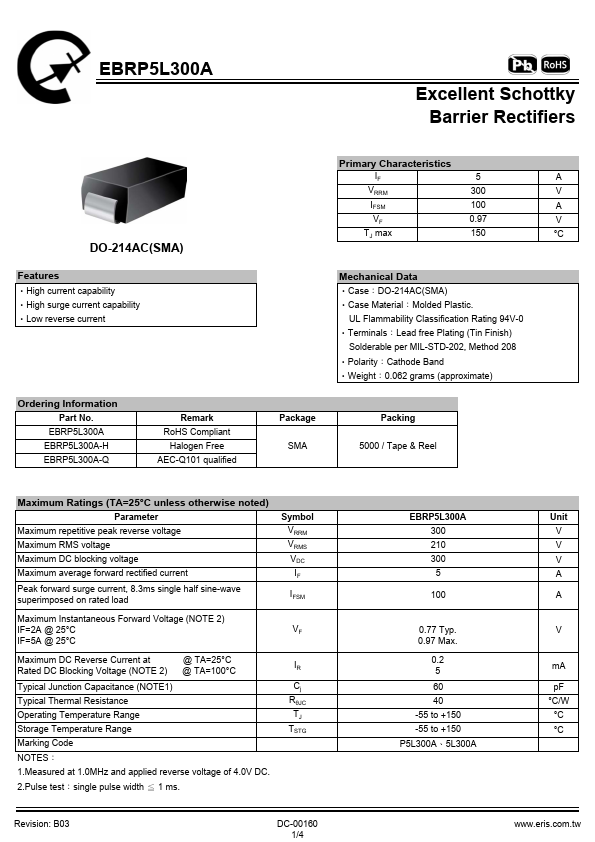

Preview of EBRP5L300A PDF

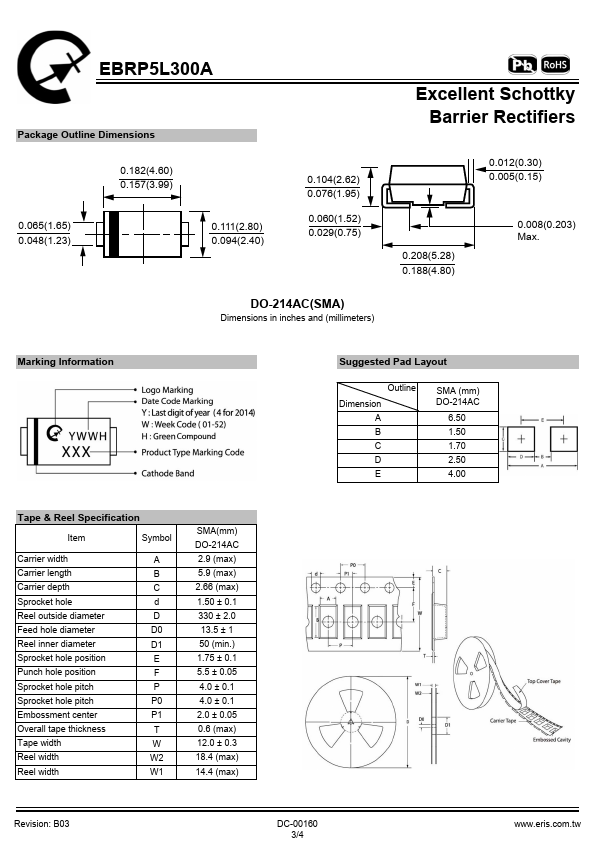

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EBRP5L300A
Manufacturer
Eris
File Size
324.26 KB
Datasheet
EBRP5L300A-Eris.pdf
Description
Excellent Schottky Barrier Rectifiers
