EBRT10E120B - Excellent Schottky Barrier Rectifiers

EBRT10E120B Description

EBRT10E120B DO-214AA(SMB) .

EBRT10E120B Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part No. Package EBRT10E120B SMB Packing 3000 / Tape & Reel Maximum Ratings (TA=25°C unless otherwise noted) PARAMETER SYMBOL Max

📥 Download Datasheet

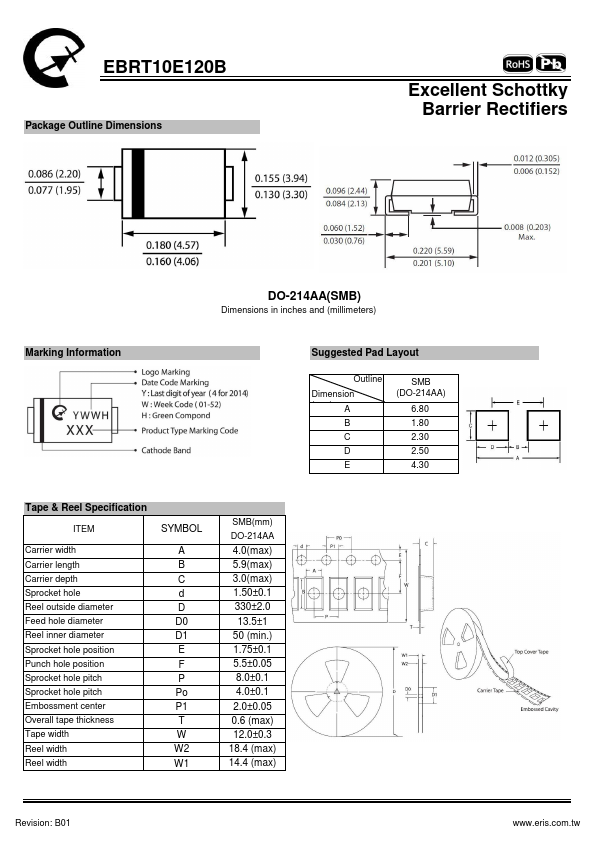

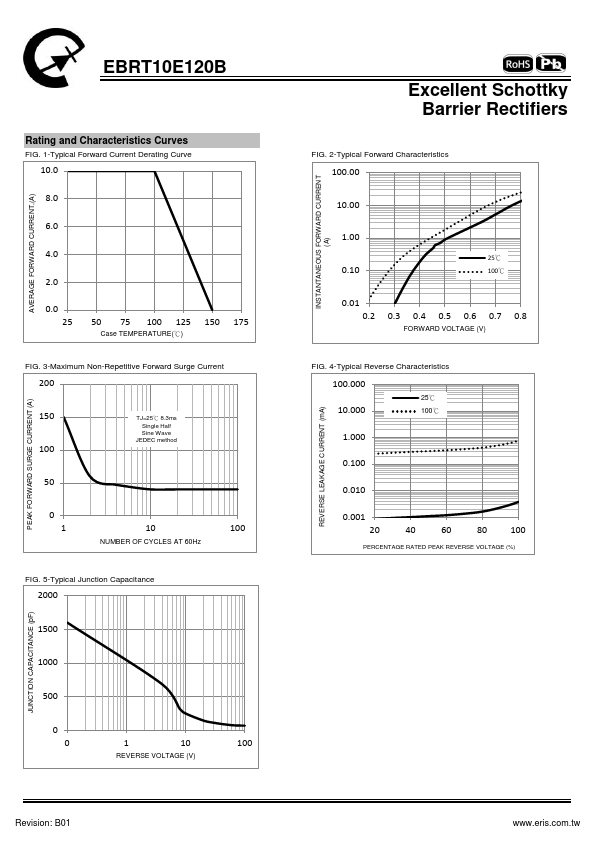

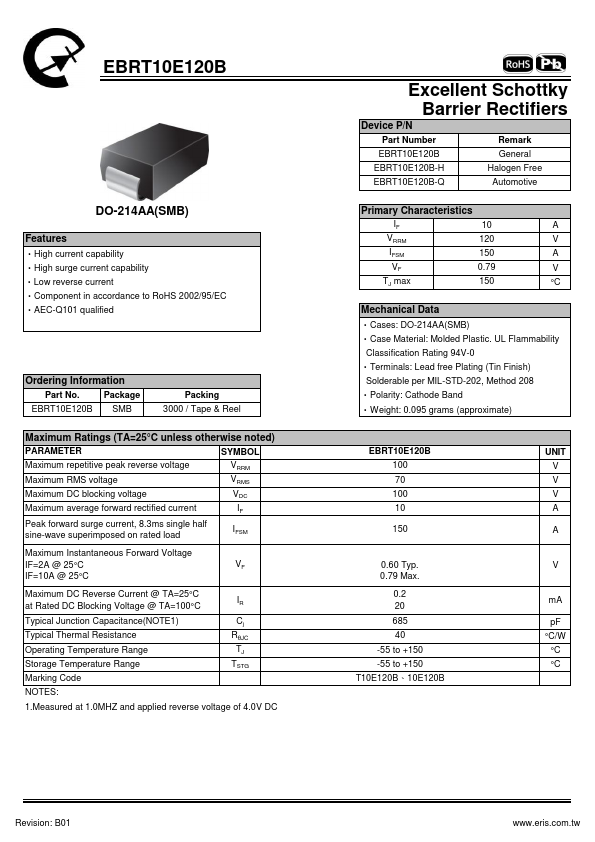

Preview of EBRT10E120B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EBRT10E120B
Manufacturer
Eris
File Size
325.51 KB
Datasheet
EBRT10E120B-Eris.pdf
Description
Excellent Schottky Barrier Rectifiers
