EBRT10L80C - Excellent Schottky Barrier Rectifiers

EBRT10L80C Description

EBRT10L80C Excellent Schottky Barrier Rectifiers DO-214AB(SMC) Primary Characteristics IF 10 A VRRM 80 V IFSM 200 A VF 0.6 V TJ max 1.

EBRT10L80C Features

* ‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Case: DO-214AB (SMC) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free P

📥 Download Datasheet

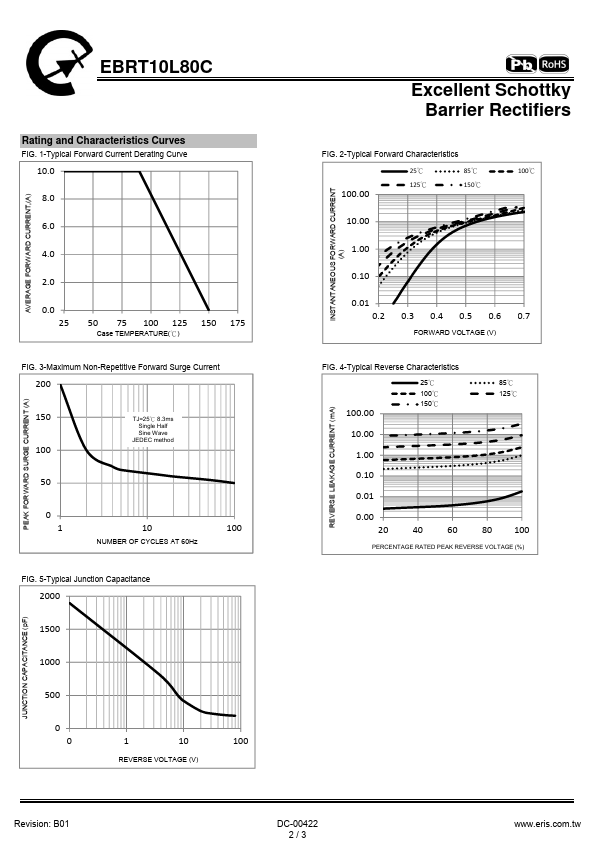

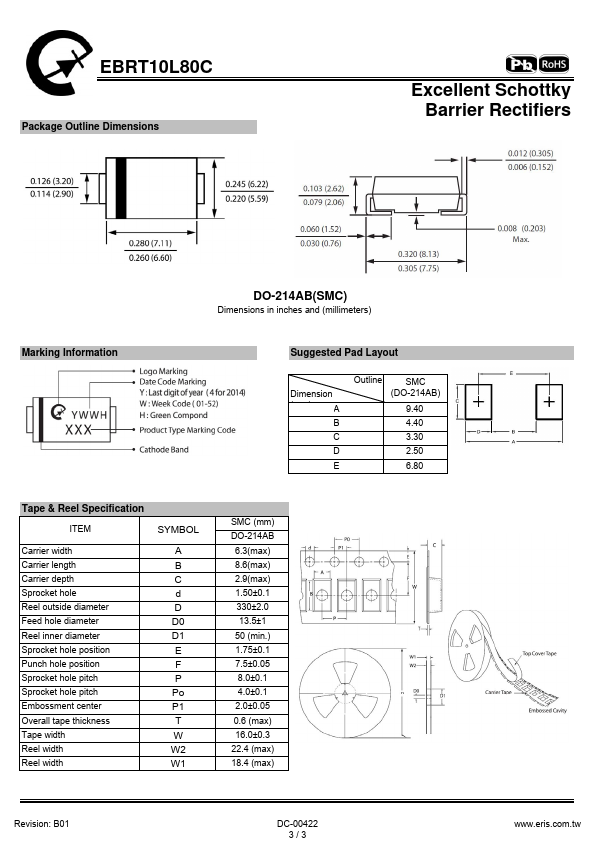

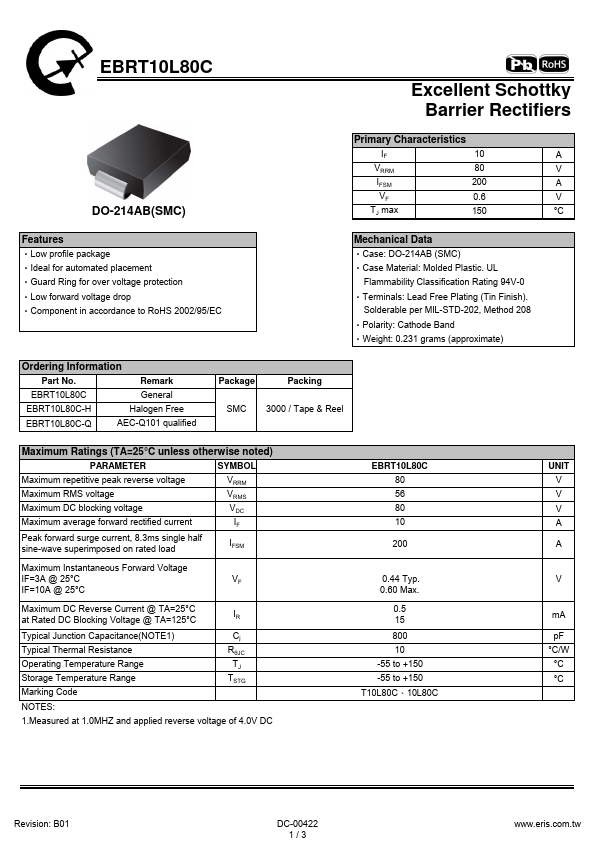

Preview of EBRT10L80C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EBRT10L80C
Manufacturer
Eris
File Size
330.64 KB
Datasheet
EBRT10L80C-Eris.pdf
Description
Excellent Schottky Barrier Rectifiers
