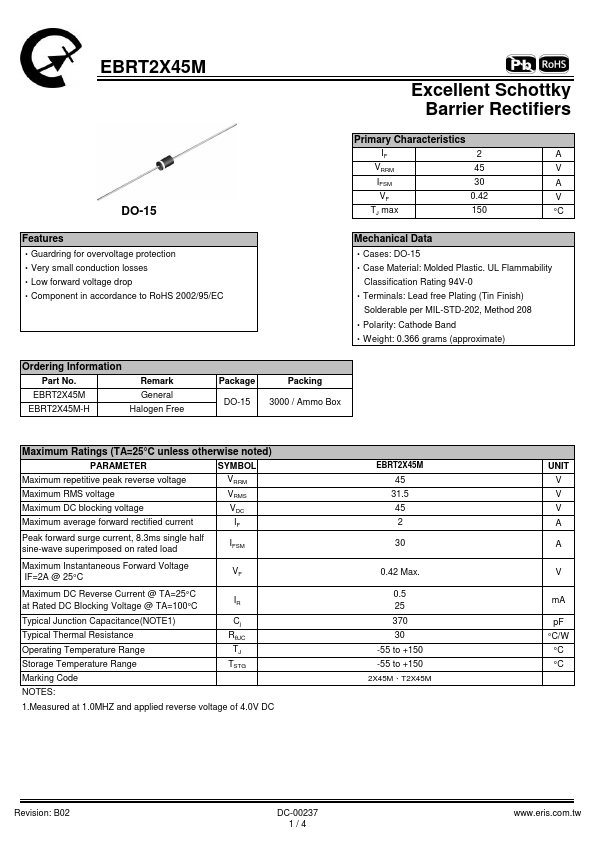

EBRT2X45M
Features
‧Guardring for overvoltage protection ‧Very small conduction losses ‧Low forward voltage drop ‧ponent in accordance to Ro HS 2002/95/EC
Mechanical Data ‧Cases: DO-15 ‧Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish)
Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.366 grams (approximate)
Ordering Information
Part No.
Remark
General
EBRT2X45M-H
Halogen Free
Package
Packing
DO-15 3000 / Ammo Box
Maximum Ratings (TA=25°C unless otherwise noted)
PARAMETER
SYMBOL
Maximum repetitive peak reverse voltage
VRRM
Maximum RMS voltage
VRMS
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load
IFSM
Maximum Instantaneous Forward Voltage IF=2A @ 25°C
Maximum DC Reverse Current @ TA=25°C at Rated DC Blocking Voltage @ TA=100°C
Typical Junction...
