EBRT2X60M Excellent Schottky Barrier Rectifiers

Eris

Description

EBRT2X60M Excellent Schottky Barrier Rectifiers DO-15 Primary Characteristics IF 2 A VRRM 60 V IFSM 20 A VF 0.5 V TJ max 150 °C Fea.

📥 Download Datasheet

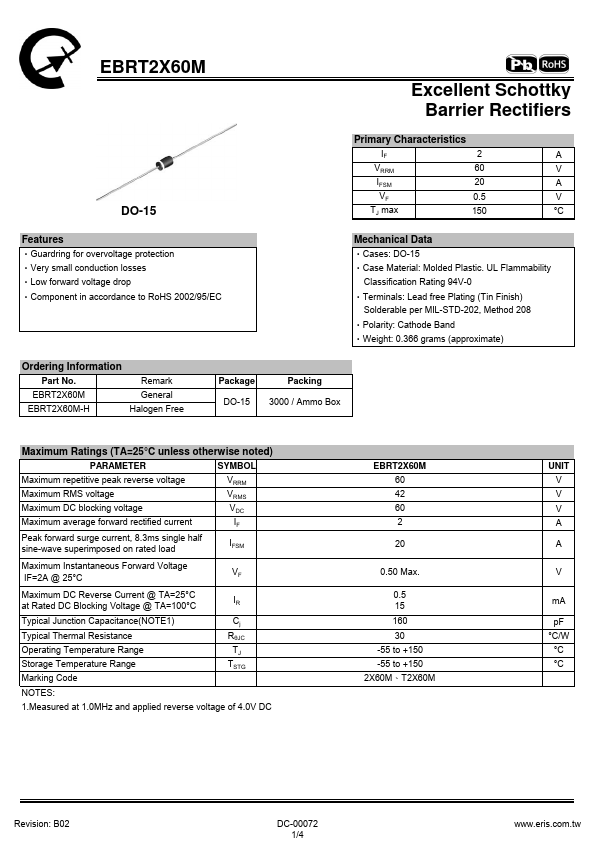

EBRT2X60M Datasheet Preview — Preview of EBRT2X60M PDF

Datasheet Specifications

Part number: EBRT2X60M
Manufacturer: Eris
File Size: 196.86 KB
Datasheet: EBRT2X60M-Eris.pdf
Description: Excellent Schottky Barrier Rectifiers

Features

* ‧Guardring for overvoltage protection ‧Very small conduction losses ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases: DO-15 ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable p

Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are represented on Eris website, harmless against all damages.
* No license, express or implied, by estoppels or otherwise, to any intellectual property is granted by this document or by any condu
