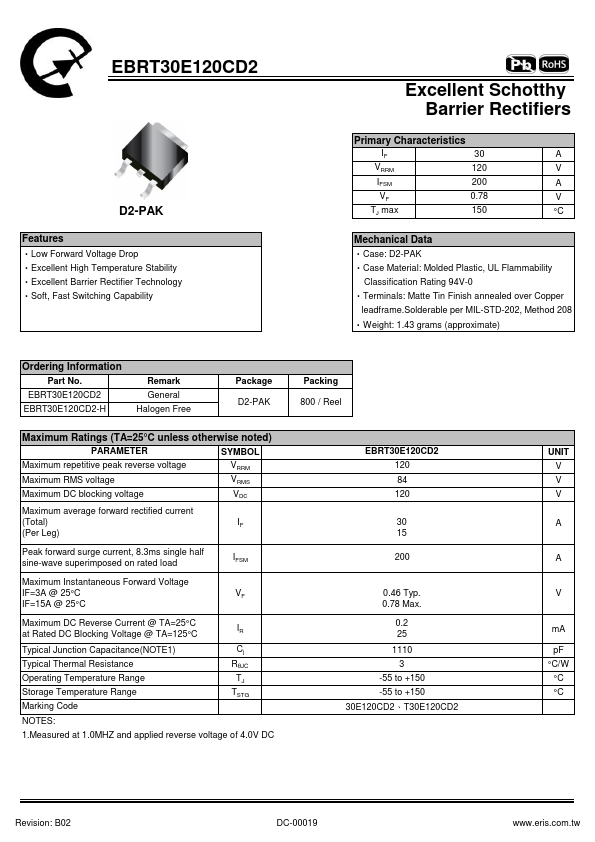

EBRT30E120CD2
Features
‧Low Forward Voltage Drop ‧Excellent High Temperature Stability ‧Excellent Barrier Rectifier Technology ‧Soft, Fast Switching Capability
Excellent Schotthy Barrier Rectifiers
Primary Characteristics
VRRM
IFSM
TJ max
°C
Mechanical Data ‧Case: D2-PAK ‧Case Material: Molded Plastic, UL Flammability
Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over Copper leadframe.Solderable per MIL-STD-202, Method 208 ‧Weight: 1.43 grams (approximate)
Ordering Information Part No.
EBRT30E120CD2 EBRT30E120CD2-H
Remark General Halogen Free
Package D2-PAK
Maximum Ratings (TA=25°C unless otherwise noted)
PARAMETER
SYMBOL
Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage
VRRM VRMS VDC
Maximum average forward rectified current
(Total)
(Per Leg)
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load
IFSM
Maximum Instantaneous Forward...
