EBRT3E100A
Features
‧High current capability ‧High surge current capability ‧Low reverse current ‧ponent in accordance to Ro HS 2002/95/EC
Primary Characteristics
VRRM
IFSM
TJ max
°C

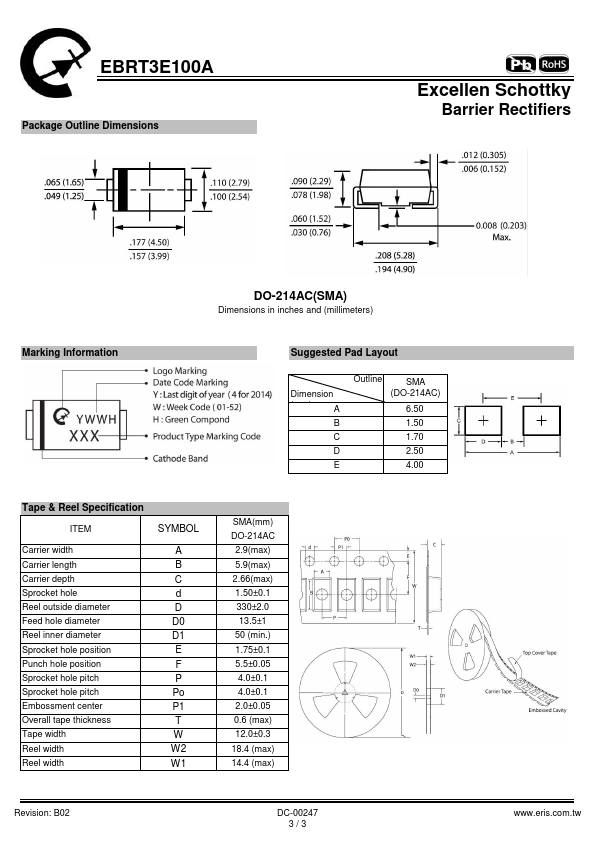

Mechanical Data ‧Case: DO-214AC(SMA) ‧Case Material: Molded Plastic. UL
Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish).
Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.062 grams (approximate)
Ordering Information
Part No.
Remark
General
EBRT3E100A-H
Halogen Free
EBRT3E100A-Q
AEC-Q101 qualified
Package
Packing
SMA 5000 / Tape & Reel
Maximum Ratings (TA=25°C unless otherwise noted)
PARAMETER
SYMBOL
Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current
VRRM VRMS VDC
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load
IFSM
Maximum Instantaneous Forward Voltage IF=3A @...
