EBRT3E100M - Excellent Schottky Barrier Rectifiers

EBRT3E100M Description

EBRT3E100M Excellent Schottky Barrier Rectifiers DO-15 Primary Characteristics IF 3 A VRRM 100 V IFSM 80 A VF 0.6 V TJ max 150 °C F.

EBRT3E100M Features

* ‧Guardring for overvoltage protection ‧Very small conduction losses ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases: DO-15 ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable p

📥 Download Datasheet

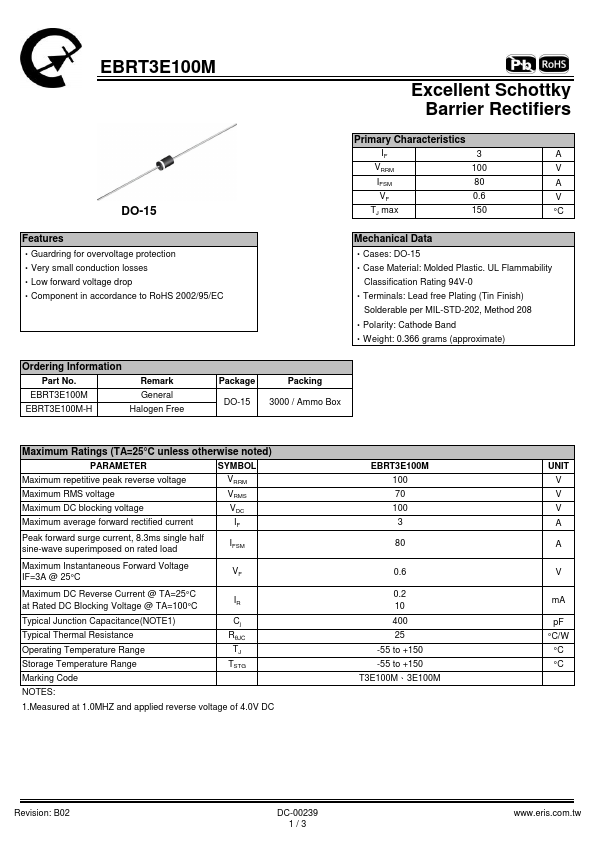

Preview of EBRT3E100M PDF

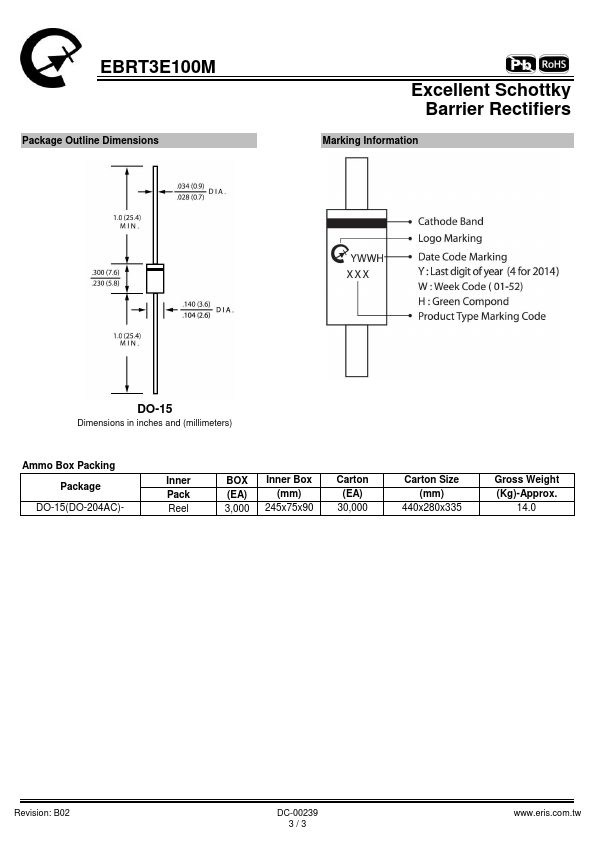

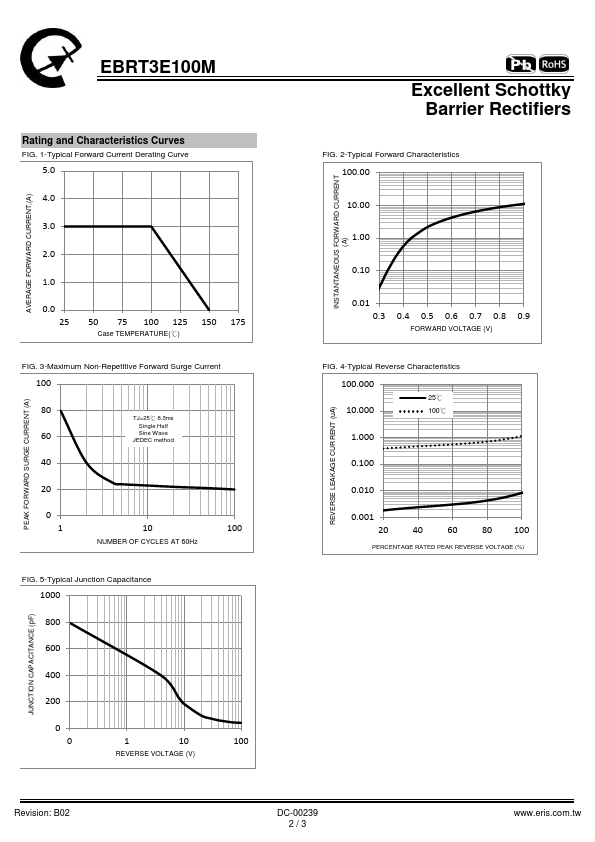

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EBRT3E100M
Manufacturer
Eris
File Size
242.12 KB
Datasheet
EBRT3E100M-Eris.pdf
Description
Excellent Schottky Barrier Rectifiers
