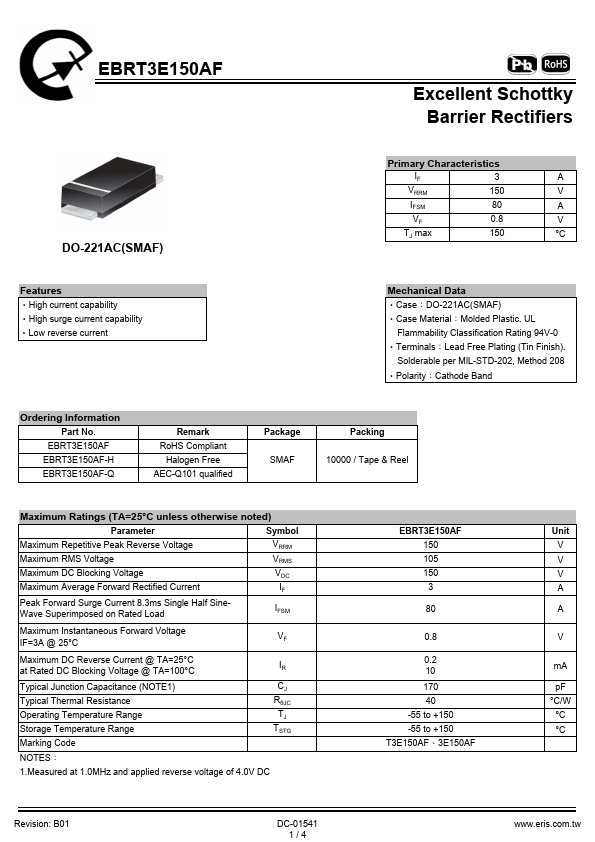

EBRT3E150AF
Features
‧High current capability ‧High surge current capability ‧Low reverse current
Mechanical Data

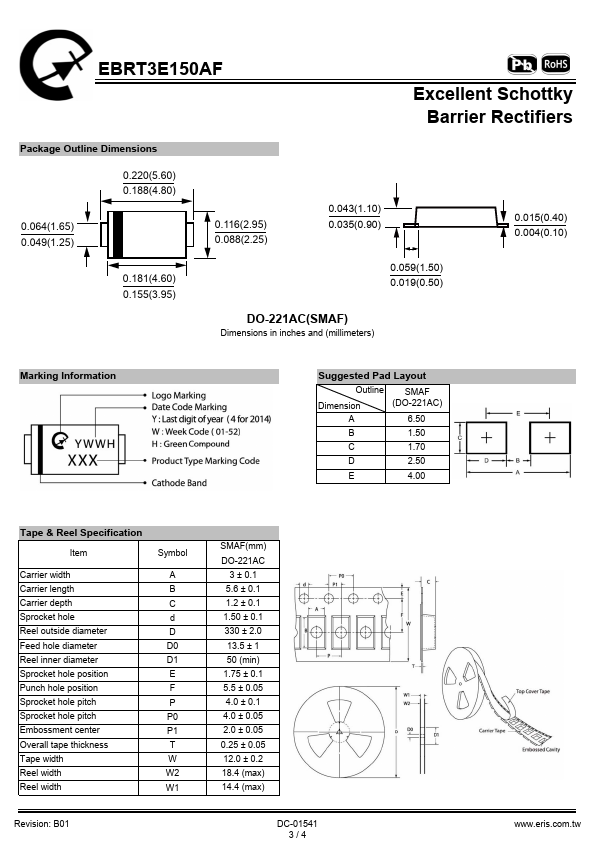

‧Case：DO-221AC(SMAF) ‧Case Material：Molded Plastic. UL
Flammability Classification Rating 94V-0 ‧Terminals：Lead Free Plating (Tin Finish).
Solderable per MIL-STD-202, Method 208 ‧Polarity：Cathode Band
Ordering Information
Part No. EBRT3E150AF EBRT3E150AF-H EBRT3E150AF-Q
Remark Ro HS pliant
Halogen Free AEC-Q101 qualified
Package SMAF
Packing 10000 / Tape & Reel
Maximum Ratings (TA=25°C unless otherwise noted)
Parameter
Symbol
Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current
VRRM VRMS VDC
Peak Forward Surge Current 8.3ms Single Half Sine Wave Superimposed on Rated Load
IFSM
Maximum Instantaneous Forward Voltage IF=3A @ 25°C
Maximum DC Reverse Current @ TA=25°C at Rated DC Blocking Voltage @ TA=100°C
Typical Junction Capacitance (NOTE1) Typical Thermal Resistance Operating...
