EBRT3E150D - Excellent Schottky Barrier Rectifiers

EBRT3E150D Description

EBRT3E150D Excellent Schottky Barrier Rectifiers DO-201AD Primary Characteristics IF 3 A VRRM 150 V IFSM 80 A VF 0.79 V TJ max 150 °.

EBRT3E150D Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases: DO-201AD ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202

📥 Download Datasheet

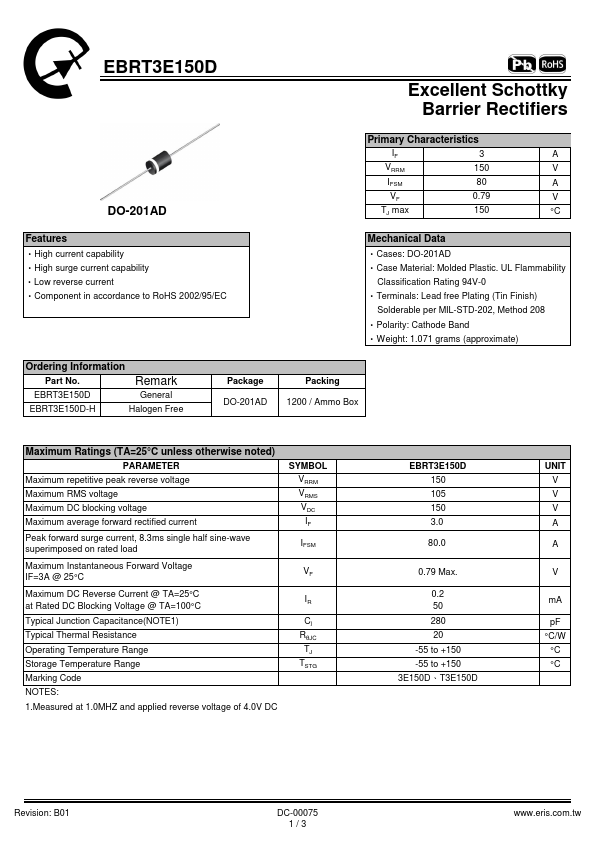

Preview of EBRT3E150D PDF

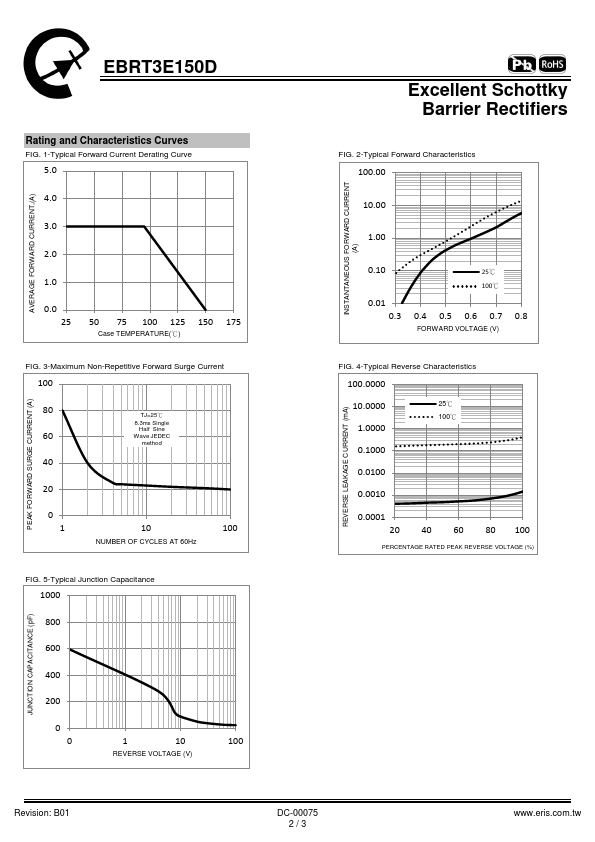

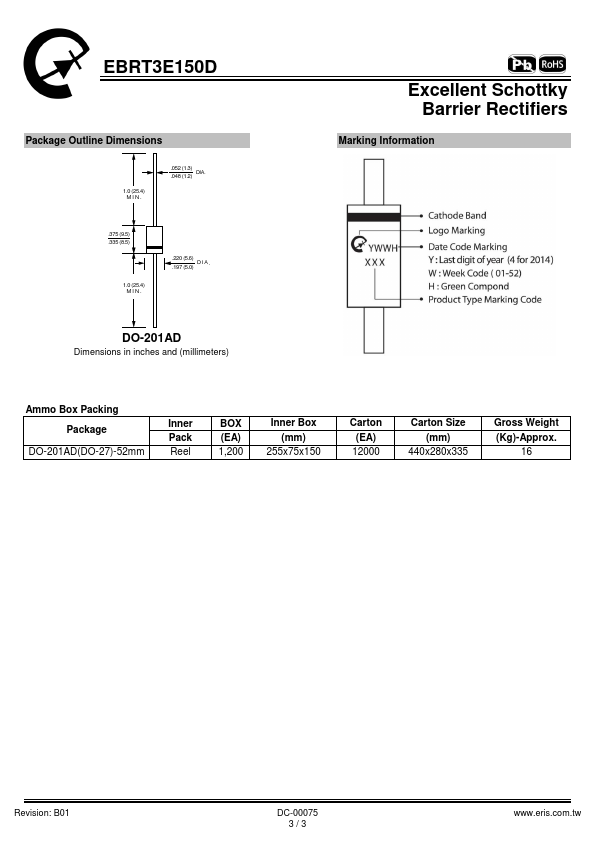

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EBRT3E150D
Manufacturer
Eris
File Size
196.35 KB
Datasheet
EBRT3E150D-Eris.pdf
Description
Excellent Schottky Barrier Rectifiers
