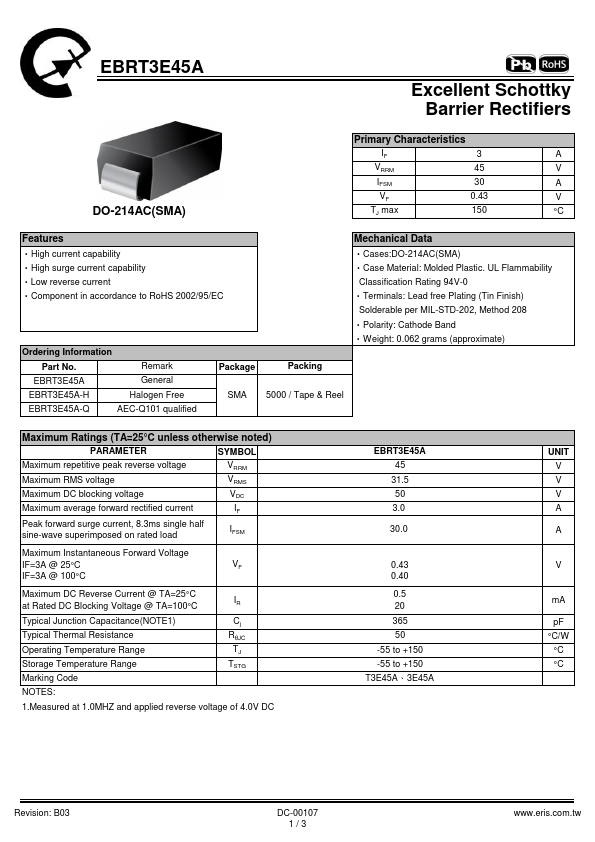

EBRT3E45A
Features
‧High current capability ‧High surge current capability ‧Low reverse current ‧ponent in accordance to Ro HS 2002/95/EC
Ordering Information
Part No.
Remark
General
EBRT3E45A-H
Halogen Free
EBRT3E45A-Q
AEC-Q101 qualified
Package SMA
Packing 5000 / Tape & Reel
Mechanical Data ‧Cases:DO-214AC(SMA) ‧Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish)
Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.062 grams (approximate)
Maximum Ratings (TA=25°C unless otherwise noted)
PARAMETER
SYMBOL
Maximum repetitive peak reverse voltage
VRRM
Maximum RMS voltage
VRMS
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load
IFSM
Maximum Instantaneous Forward Voltage
IF=3A @ 25°C
IF=3A @ 100°C
Maximum DC Reverse Current @ TA=25°C at Rated DC Blocking Voltage @...
