EBRT5L100B
Features
‧High current capability ‧High surge current capability ‧Low reverse current ‧ponent in accordance to Ro HS 2002/95/EC

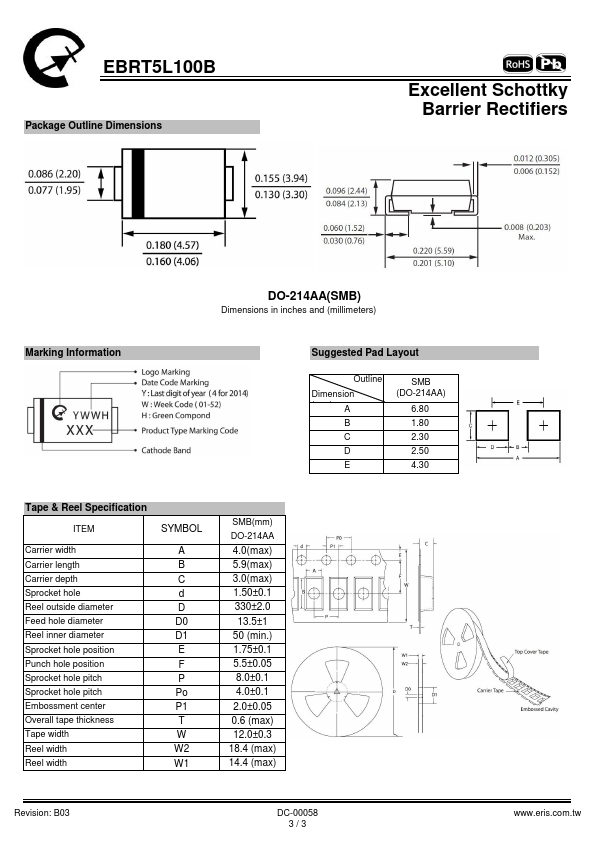

Mechanical Data ‧Cases: DO-214AA(SMB) ‧Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish)
Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.095 grams (approximate)
Ordering Information
Part No.
Remark
General
EBRT5L100B-H
Halogen Free
EBRT5L100B-Q
AEC-Q101 qualified
Package
Packing
SMB 3000 / Tape & Reel
Maximum Ratings (TA=25°C unless otherwise noted)
PARAMETER
SYMBOL
Maximum repetitive peak reverse voltage
VRRM
Maximum RMS voltage
VRMS
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load
IFSM
Maximum Instantaneous Forward Voltage
IF=2A @ 25°C
IF=5A @ 25°C
Maximum DC Reverse Current @ TA=25°C at Rated DC Blocking Voltage...
