Datasheet Specifications
- Part number
- EBRT5L100D
- Manufacturer
- Eris
- File Size
- 195.66 KB
- Datasheet
- EBRT5L100D-Eris.pdf
- Description
- Excellent Schottky Barrier Rectifiers
Description

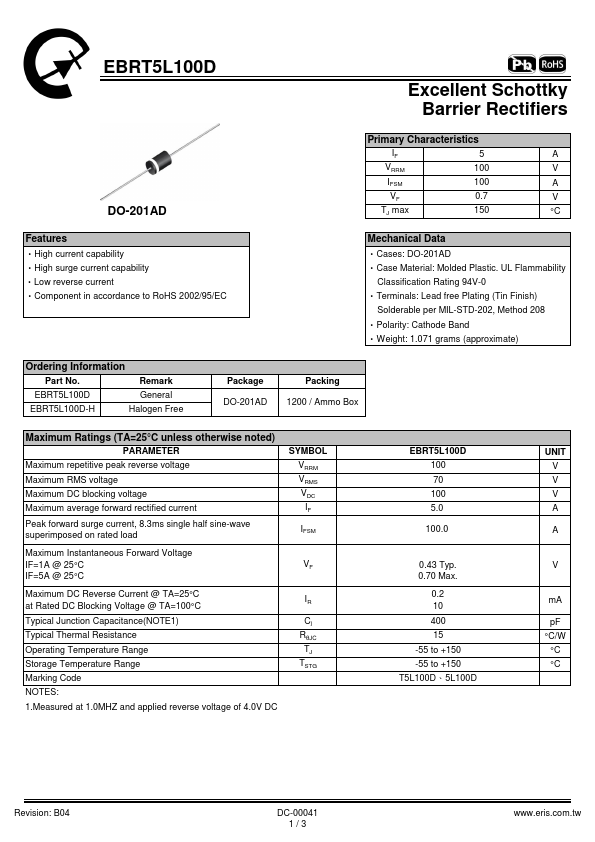

EBRT5L100D Excellent Schottky Barrier Rectifiers DO-201AD Primary Characteristics IF 5 A VRRM 100 V IFSM 100 A VF 0.7 V TJ max 150 °.
Features
* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases: DO-201AD ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202EBRT5L100D Distributors
