EBRT5L150A Excellent Schottky Barrier Rectifiers

Eris

Description

EBRT5L150A DO-214AC(SMA) .

📥 Download Datasheet

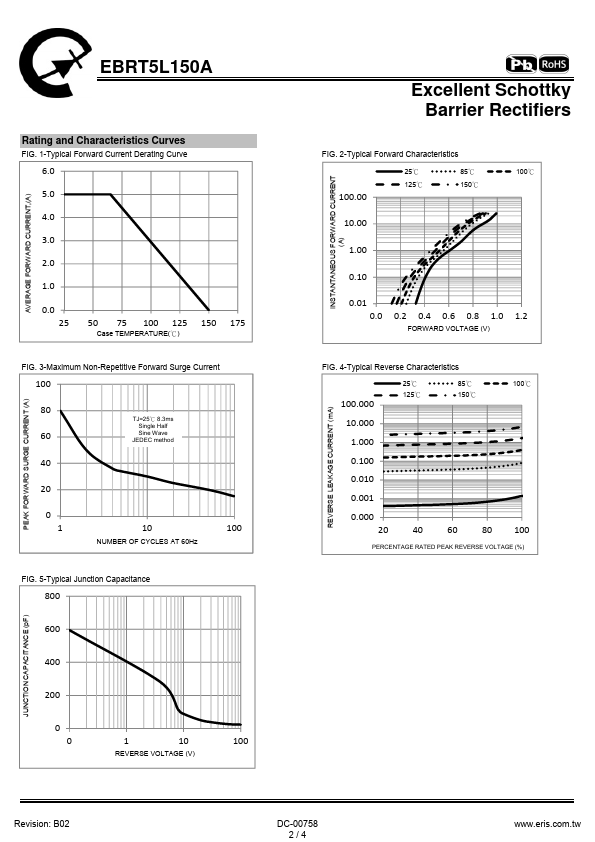

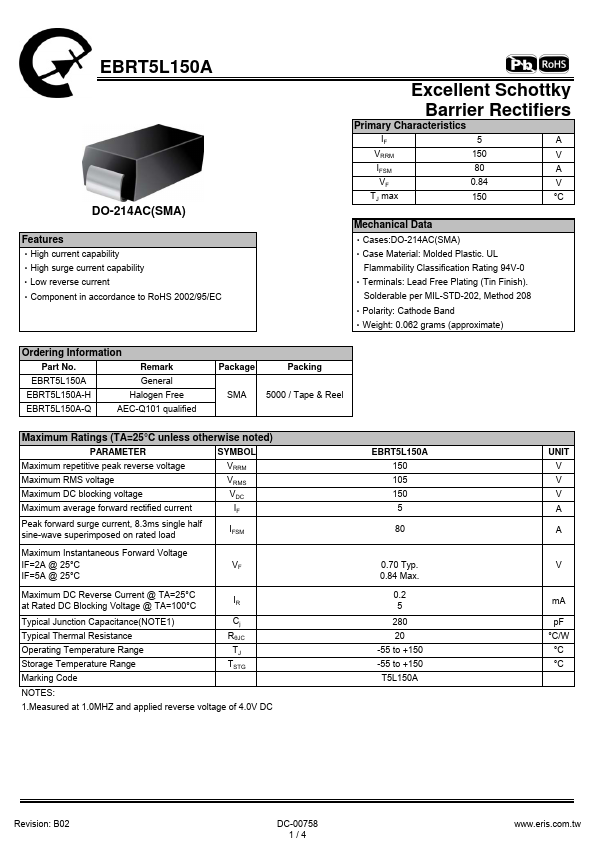

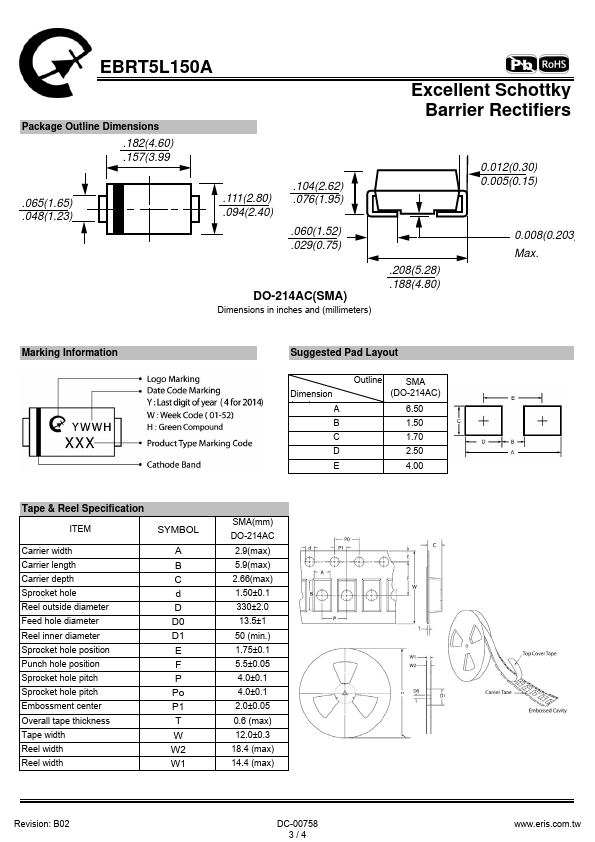

EBRT5L150A Datasheet Preview — Preview of EBRT5L150A PDF

Datasheet Specifications

Part number: EBRT5L150A
Manufacturer: Eris
File Size: 286.02 KB
Datasheet: EBRT5L150A-Eris.pdf
Description: Excellent Schottky Barrier Rectifiers

Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Excellent Schottky Barrier Rectifiers Primary Characteristics IF 5 A VRRM 150 V IFSM 80 A VF 0.84 V TJ max 150 °C Mechanical Data ‧Cases:DO-214AC(SMA) ‧Case Mat

Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are represented on Eris website, harmless against all damages.
* No license, express or implied, by estoppels or otherwise, to any intellectual property is granted by this document or by any condu
