Datasheet Specifications
- Part number
- EBRT5L150B
- Manufacturer
- Eris
- File Size
- 381.56 KB
- Datasheet
- EBRT5L150B-Eris.pdf
- Description
- Excellent Schottky Barrier Rectifiers
Description

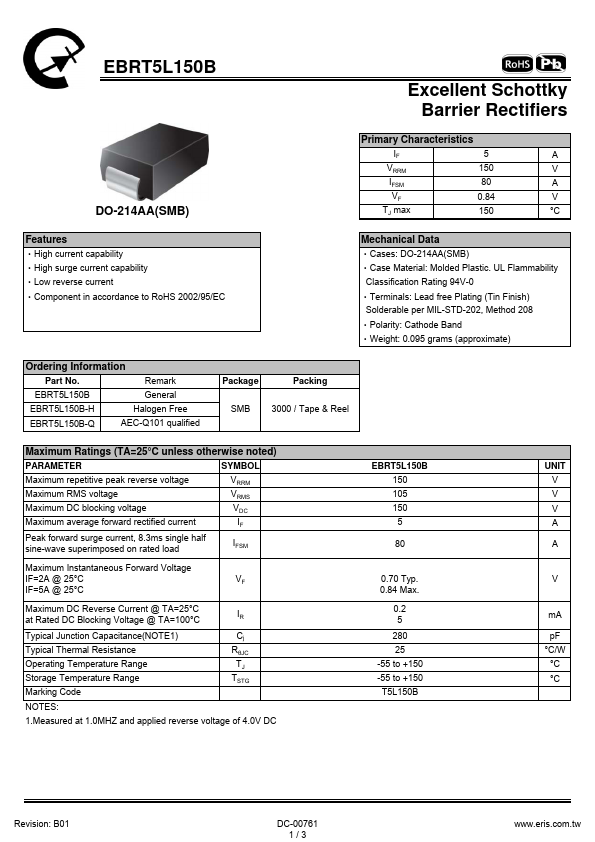

EBRT5L150B Excellent Schottky Barrier Rectifiers DO-214AA(SMB) Primary Characteristics IF 5 A VRRM 150 V IFSM 80 A VF 0.84 V TJ max 1.
Features
* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases: DO-214AA(SMB) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STEBRT5L150B Distributors
