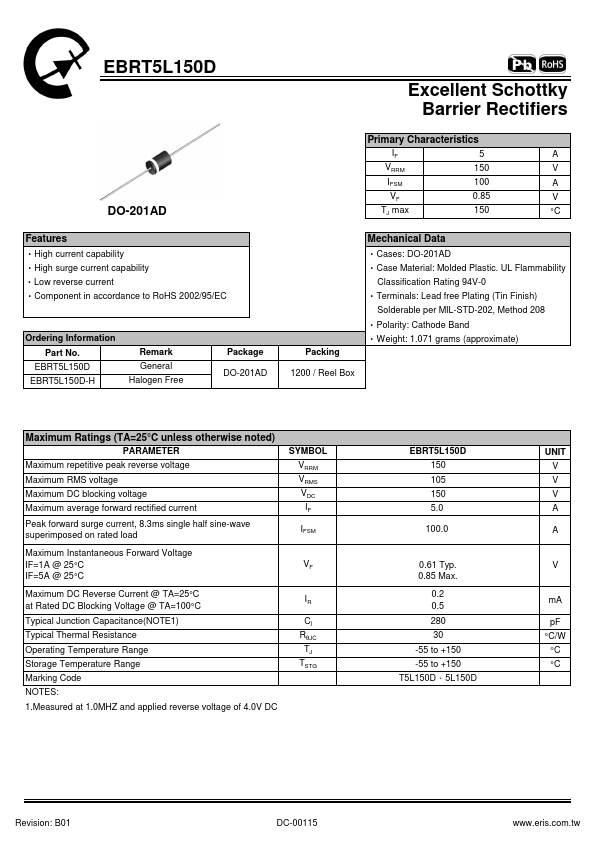

EBRT5L150D
Features
‧High current capability ‧High surge current capability ‧Low reverse current ‧ponent in accordance to Ro HS 2002/95/EC
Ordering Information Part No.
EBRT5L150D EBRT5L150D-H
Remark General Halogen Free

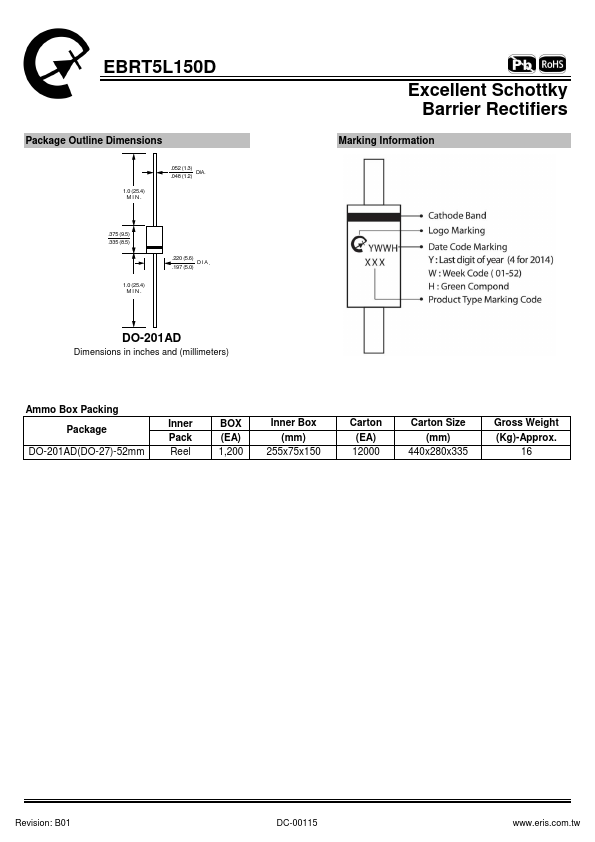

Package DO-201AD
Excellent Schottky Barrier Rectifiers
Primary Characteristics
VRRM
IFSM
TJ max
°C
Packing
Mechanical Data ‧Cases: DO-201AD ‧Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish)
Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 1.071 grams (approximate)
1200 / Reel Box
Maximum Ratings (TA=25°C unless otherwise noted) PARAMETER
Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load
SYMBOL VRRM VRMS VDC IF
IFSM
Maximum Instantaneous Forward Voltage
IF=1A @...
