FR505, FR501, Fast Recovery Rectifiers

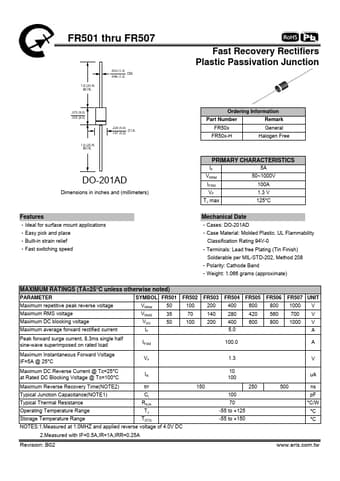

FR501 thru FR507 1.0 (25.4) MIN..052 (1.3) DIA..048 (1.2) Fast Recovery Rectifiers Plastic Passivation Junction .375 (9.5) .335 (8.5) 1.0 (25.4).

FR501-Eris.pdf

FR505 Datasheet Preview — This datasheet PDF includes multiple part numbers: FR505, FR501. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FR505, FR501

Manufacturer:

Eris

File Size:

163.08 KB

Description:

Fast Recovery Rectifiers

Note:

This datasheet PDF includes multiple part numbers: FR505, FR501.
Please refer to the document for exact specifications by model.

Applications

* ‧Easy pick and place ‧Built-in strain relief ‧Fast switching speed Mechanical Date ‧Cases: DO-201AD ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 1.066 gr
