FR801G - Fast Recovery Rectifiers

Datasheet Summary

Features

  • ‧Ideal for surface mount.

📥 Download Datasheet

Datasheet preview – FR801G

Datasheet Details

Part number FR801G
Manufacturer Eris
File Size 155.09 KB
Description Fast Recovery Rectifiers
Datasheet download datasheet FR801G Datasheet
Additional preview pages of the FR801G datasheet.

📁 Similar Datasheet

  • FR801G - GLASS PASSIVATED FAST RECOVERY RECTIFIERS (Sangdest Microelectronics)
  • FR801G - FAST RECOVERY RECTIFIER (Won-Top Electronics)
  • FR801 - FAST RECOVERY RECTIFIER DIODES (EIC)
  • FR801 - FAST RECOVERY RECTIFIER (Rectron)
  • FR801 - FAST RECOVERY RECTIFIER (Diodesorporated)
  • FR801 - FAST RECOVERY RECTIFIER (Formosa MS)
  • FR8012HAQ - Bluetooth Low Energy SOC (FREQCHIP)
  • FR8018 - 500KHz Synchronous Step-Down DC/DC Converter (Fiti)
  • FR8018H - Bluetooth Low Energy SOC (FREQCHIP)
  • FR801S - FAST RECOVERY RECTIFIER (Rectron)
Other Datasheets by Eris
  • FR801S - Fast Recovery Rectifiers
  • FR802G - Fast Recovery Rectifiers
  • FR802S - Fast Recovery Rectifiers Glass Passivation Junction
  • FR803G - Fast Recovery Rectifiers
  • FR803S - Fast Recovery Rectifiers Glass Passivation Junction
  • FR804G - Fast Recovery Rectifiers
  • FR804S - Fast Recovery Rectifiers Glass Passivation Junction
  • FR805G - Fast Recovery Rectifiers

Full PDF Text Transcription

Click to expand full text

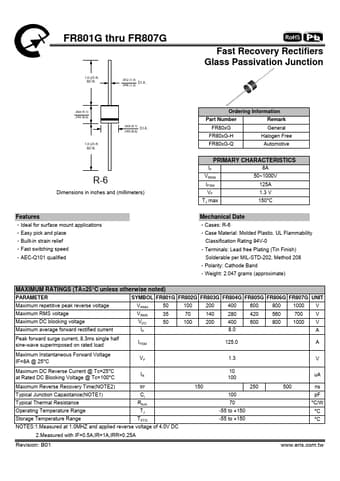

FR801G thru FR807G 1.0 (25.4) MIN. .052 (1.3) DIA. .048 (1.2) Fast Recovery Rectifiers Glass Passivation Junction .360 (9.1) .340 (8.6) 1.0 (25.4) MIN. .360 (9.1) DIA. .340 (8.6) R-6 Dimensions in inches and (millimeters) Ordering Information Part Number Remark FR80xG General FR80xG-H Halogen Free FR80xG-Q Automotive PRIMARY CHARACTERISTICS IF 8A VRRM 50~1000V IFSM 125A VF 1.3 V TJ max 150°C Features ‧Ideal for surface mount applications ‧Easy pick and place ‧Built-in strain relief ‧Fast switching speed ‧AEC-Q101 qualified Mechanical Date ‧Cases: R-6 ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 2.
