HER1006C High Efficiency Rectifiers

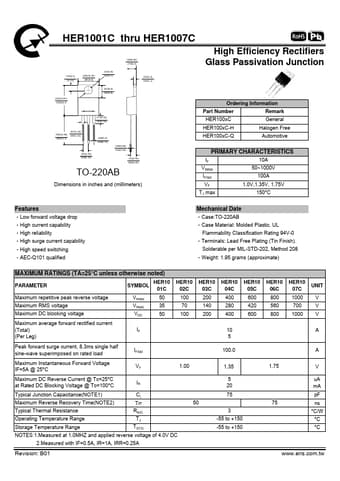

HER1001C thru HER1007C High Efficiency Rectifiers .189(4.82) .173(4.4) Glass Passivation Junction .129(3.3) .1(2.54) .403(10.26) .385(9.8) .153(3.9) .145(3.7) .055(1.4) .043(1.1) .624(15.87). .578(14.7) .251(6.4) .228(5.8) .177(4.50) .140(3.56) .549(13.96) .499(12.7) .057(1.45) 046(1.16) .039(1.0) .028(0.72) .101(2.59) .098(2.49) .026(0.68) .014(0.36) .114(2.92) .080(2.05) TO-220AB Dimensions in inches and (millimeters) Ordering Information Part.

HER1006C Features

* ‧Low forward voltage drop ‧High current capability ‧High reliability ‧High surge current capability ‧High speed switching ‧AEC-Q101 qualified Mechanical Date ‧Case:TO-220AB ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: L

HER1001C-Eris.pdf

HER1006C Datasheet Preview — This datasheet PDF includes multiple part numbers: HER1006C, HER1001C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HER1006C, HER1001C

Manufacturer:

Eris

File Size:

181.74 KB

Description:

High efficiency rectifiers.

Note:

This datasheet PDF includes multiple part numbers: HER1006C, HER1001C.
Please refer to the document for exact specifications by model.
