KBPC2510, KBPC25005 Glass Passivated Bridge Rectifiers

KBPC2510 Description

KBPC25005 thru KBPC2510 Glass Passivated Bridge Rectifiers KBPC .

KBPC2510 Features

* ‧Glass passivated die construction ‧Low forward voltage drop ‧High current capability ‧High surge current capability ‧Plastic material-UL flammability 94V-0 Primary Characteristics IF VRRM IFSM VF TJ max 25 50~1000 350 1.1 150 A V A V °C Ordering Information Part No. KBPC25005 thru KBPC2510 Re

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KBPC2510, KBPC25005. Please refer to the document for exact specifications by model.

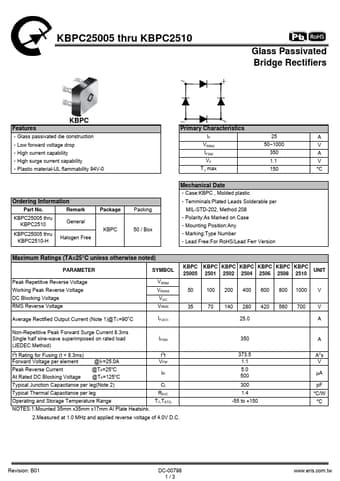

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KBPC2510, KBPC25005
Manufacturer
Eris
File Size
321.46 KB
Datasheet
KBPC25005-Eris.pdf
Description
Glass Passivated Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: KBPC2510, KBPC25005.
Please refer to the document for exact specifications by model.
