MBR20100CD, MBR2040CD Schottky Barrier Rectifiers

Eris

Description

MBR20xxxCD SERIES Schottky Barrier Rectifiers D-PAK(TO-252) .

📥 Download Datasheet

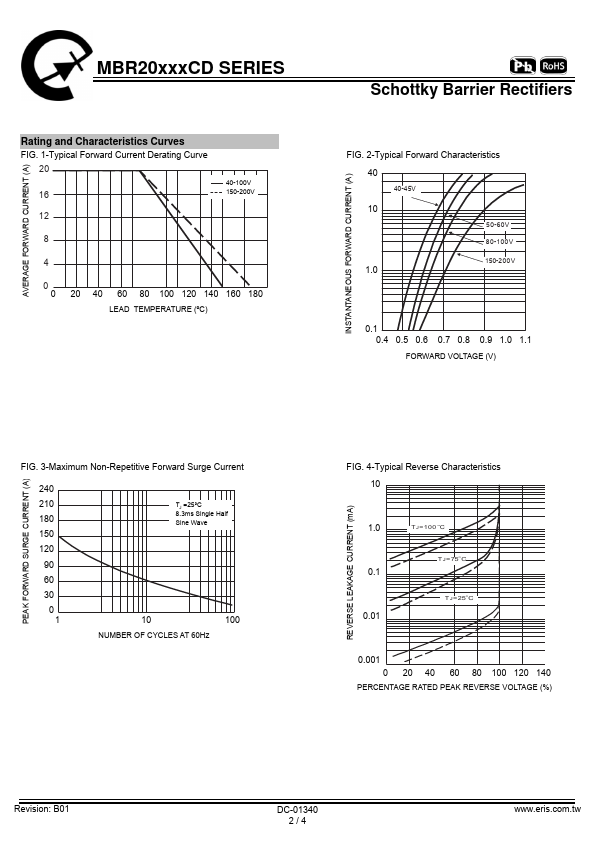

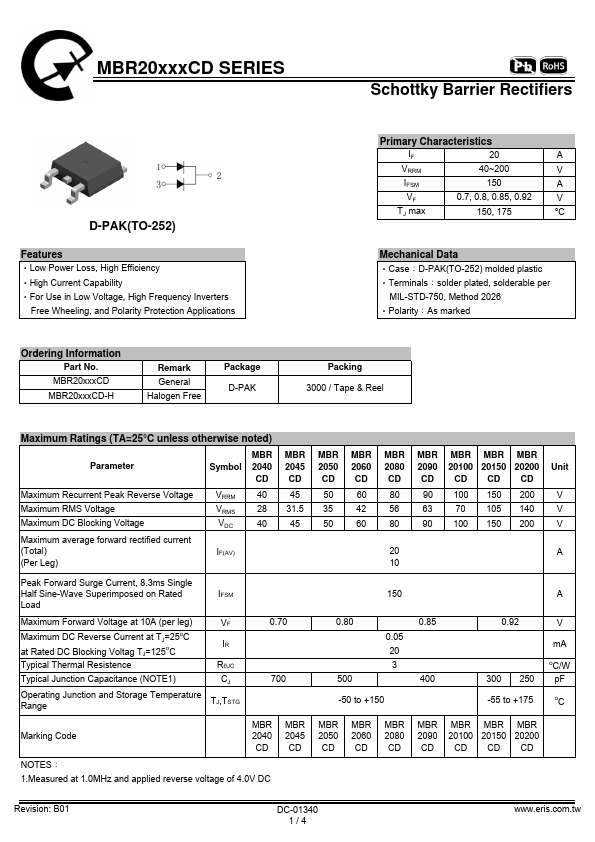

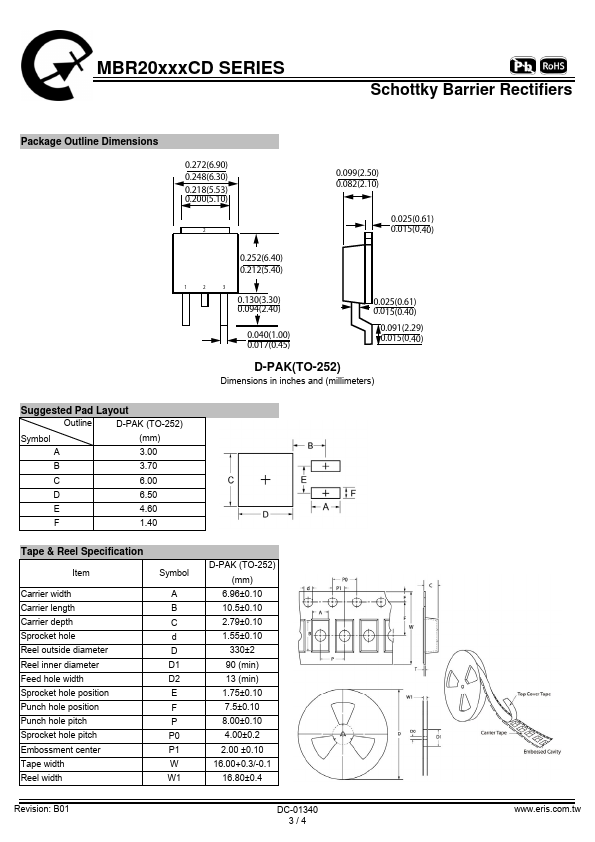

MBR20100CD Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR20100CD, MBR2040CD. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MBR20100CD, MBR2040CD
Manufacturer: Eris
File Size: 200.46 KB
Datasheet: MBR2040CD-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: MBR20100CD, MBR2040CD.
Please refer to the document for exact specifications by model.

Applications

* Primary Characteristics IF 20 A VRRM 40~200 V IFSM 150 A VF 0.7, 0.8, 0.85, 0.92 V TJ max 150, 175 °C Mechanical Data ‧Case：D-PAK(TO-252) molded plastic ‧Terminals：solder plated, solderable per MIL-STD-750, Method 2026 ‧Polarity：As marked Ordering Information Part No. MBR20xxxCD MB
