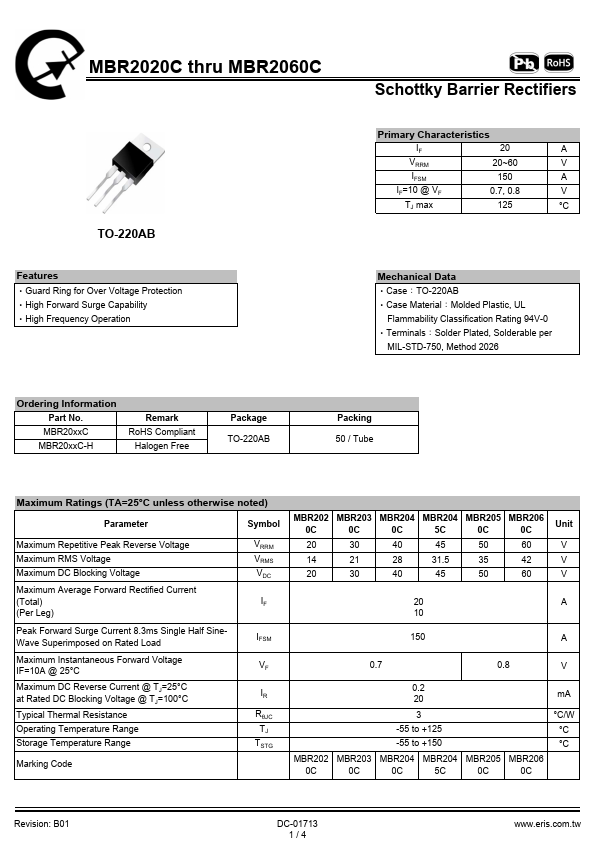

MBR2020C - Schottky Barrier Rectifiers

Eris

Datasheet Details

Part number	MBR2020C
Manufacturer	Eris
File Size	219.27 KB
Description	Schottky Barrier Rectifiers
Datasheet	MBR2020C-Eris.pdf

‧Guard Ring for Over Voltage Protection ‧High Forward Surge Capability ‧High Frequency Operation Schottky Barrier Rectifiers Primary Characteristics IF 20 A VRRM 20~60 V IFSM 150 A IF=10 @ VF 0.7, 0.8 V TJ max 125 °C Mechanical Data ‧Case：TO-220AB ‧Case Material：Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals：Solder Plated, Solderable per MIL-STD-750, Method 2026 Ordering Information Part No. MBR20xxC MBR20xxC-H Remark RoHS Compliant Halogen Free Packa.
