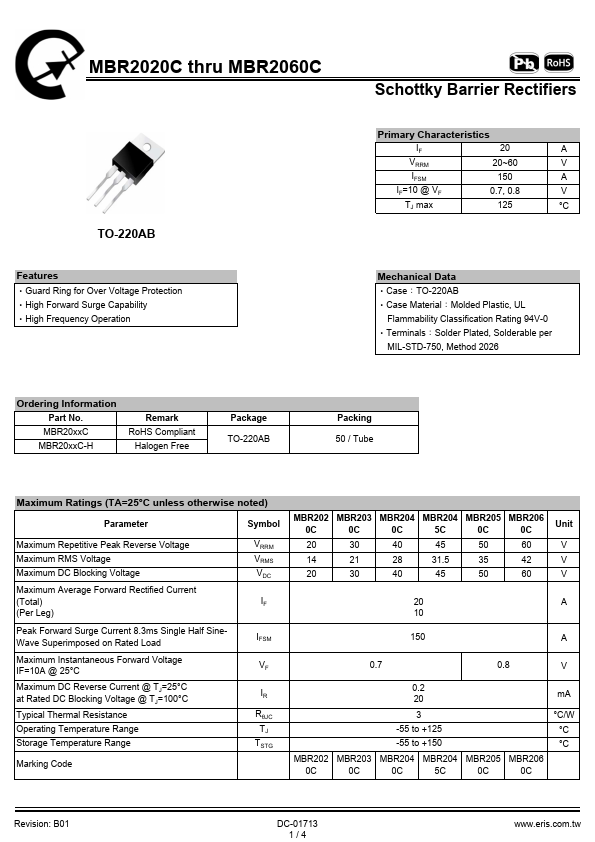

MBR2040C
Features
‧Guard Ring for Over Voltage Protection ‧High Forward Surge Capability ‧High Frequency Operation
Schottky Barrier Rectifiers
Primary Characteristics
VRRM
20~60
IFSM
IF=10 @ VF
0.7, 0.8
TJ max
°C
Mechanical Data

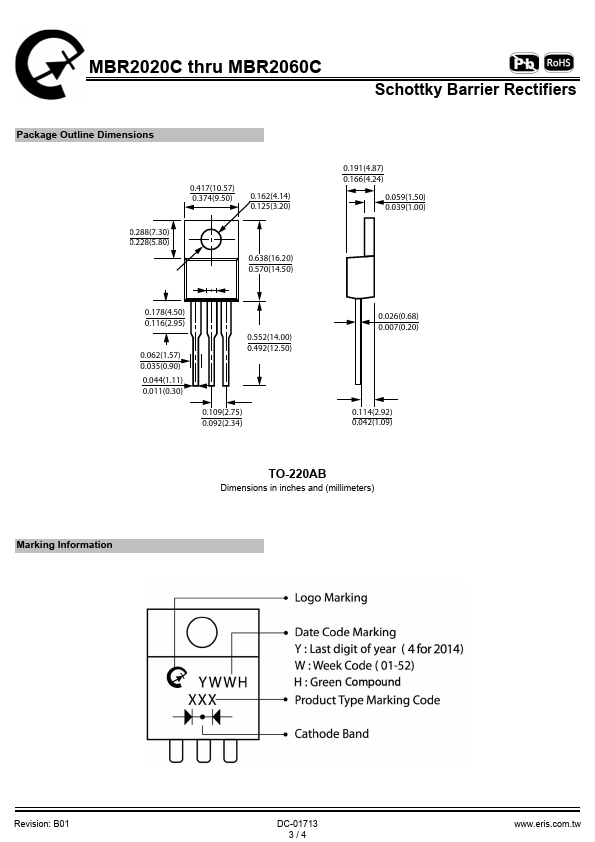

‧Case：TO-220AB ‧Case Material：Molded Plastic, UL
Flammability Classification Rating 94V-0 ‧Terminals：Solder Plated, Solderable per
MIL-STD-750, Method 2026
Ordering Information
Part No. MBR20xx C MBR20xx C-H
Remark Ro HS pliant
Halogen Free
Package TO-220AB
Packing 50 / Tube
Maximum Ratings (TA=25°C unless otherwise noted)
Parameter
Symbol
Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current (Total) (Per Leg)
Peak Forward Surge Current 8.3ms Single Half Sine Wave Superimposed on Rated Load
Maximum Instantaneous Forward Voltage IF=10A @ 25°C
Maximum DC Reverse Current @ TJ=25°C at Rated DC Blocking Voltage @ TJ=100°C Typical Thermal Resistance...
