MBR2045CD, MBR2040CD Schottky Barrier Rectifiers

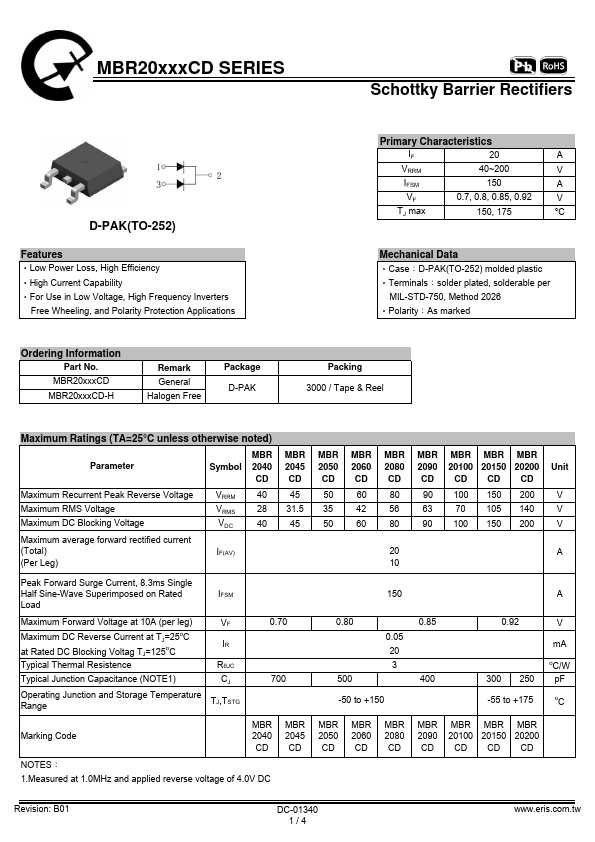

📥 Download Datasheet Datasheet Preview Page 1

Description

MBR20xxxCD SERIES Schottky Barrier Rectifiers D-PAK(TO-252) .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR2045CD, MBR2040CD. Please refer to the document for exact specifications by model.

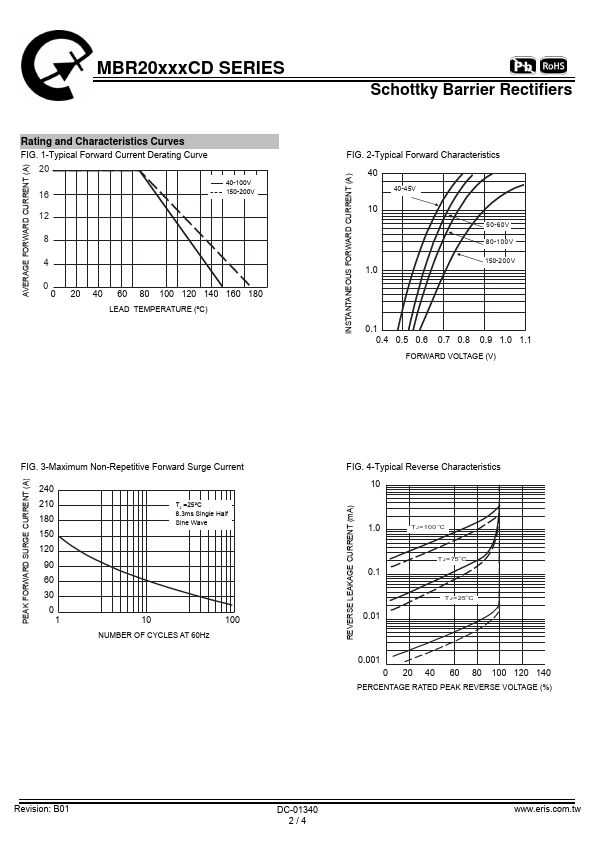

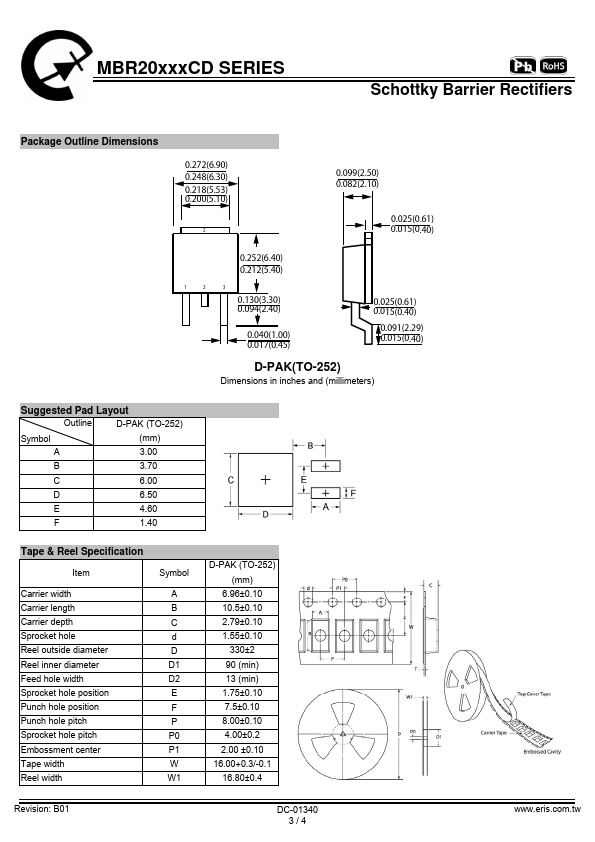

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MBR2045CD, MBR2040CD
Manufacturer
Eris
File Size
200.46 KB
Datasheet
MBR2040CD-Eris.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBR2045CD, MBR2040CD.
Please refer to the document for exact specifications by model.

Applications

* Primary Characteristics IF 20 A VRRM 40~200 V IFSM 150 A VF 0.7, 0.8, 0.85, 0.92 V TJ max 150, 175 °C Mechanical Data ‧Case：D-PAK(TO-252) molded plastic ‧Terminals：solder plated, solderable per MIL-STD-750, Method 2026 ‧Polarity：As marked Ordering Information Part No. MBR20xxxCD MB
