MBR2050C, MBR2020C Schottky Barrier Rectifiers

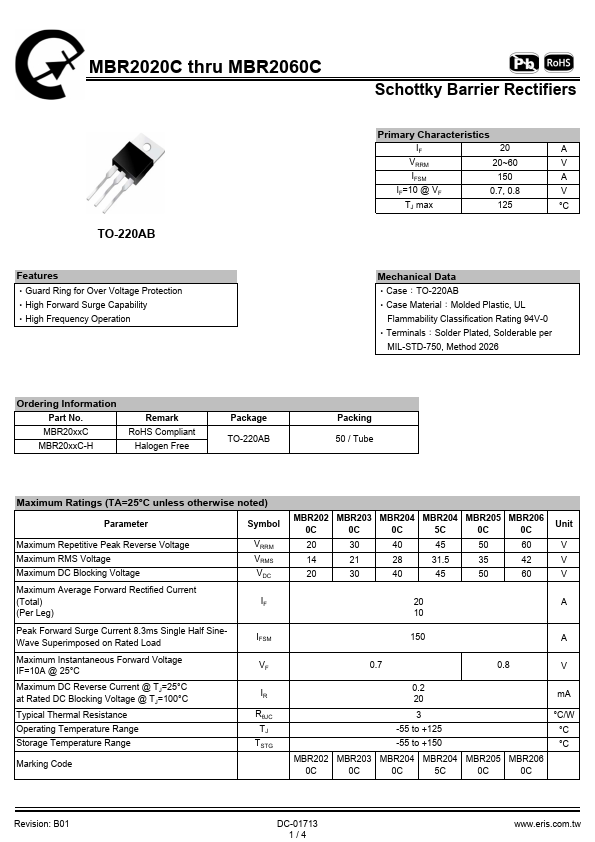

📥 Download Datasheet  Datasheet Preview Page 1

Description

MBR2020C thru MBR2060C TO-220AB .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR2050C, MBR2020C. Please refer to the document for exact specifications by model.

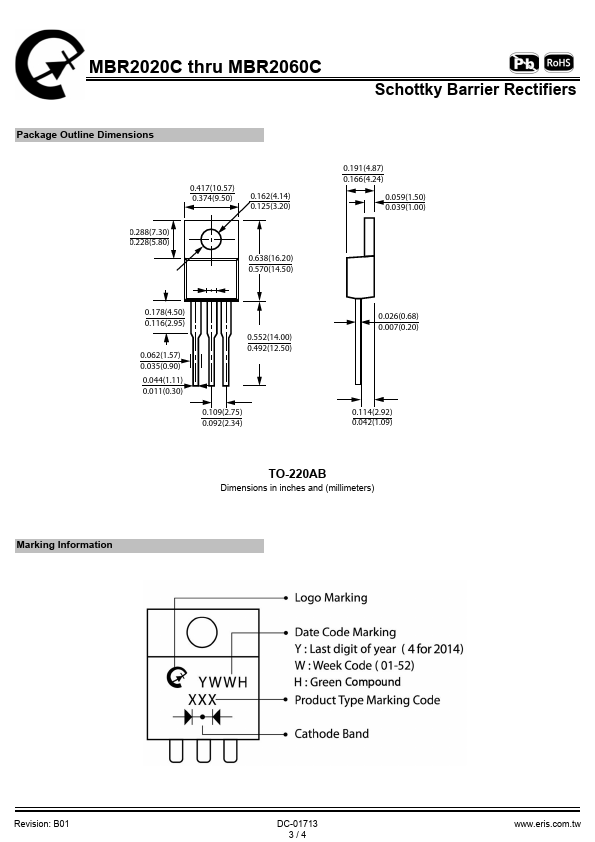

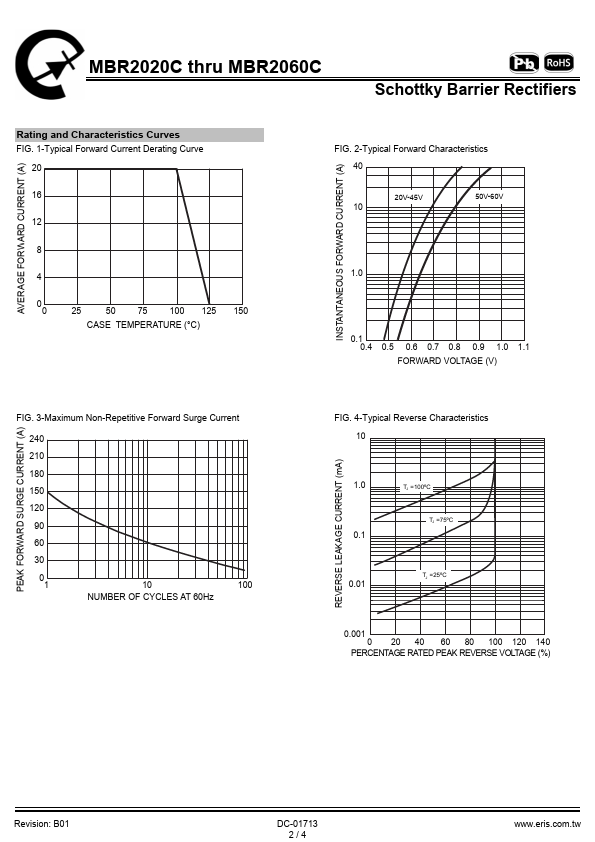

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MBR2050C, MBR2020C
Manufacturer
Eris
File Size
219.27 KB
Datasheet
MBR2020C-Eris.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBR2050C, MBR2020C.
Please refer to the document for exact specifications by model.

Features

* ‧Guard Ring for Over Voltage Protection ‧High Forward Surge Capability ‧High Frequency Operation Schottky Barrier Rectifiers Primary Characteristics IF 20 A VRRM 20~60 V IFSM 150 A IF=10 @ VF 0.7, 0.8 V TJ max 125 °C Mechanical Data ‧Case:TO-220AB ‧Case Material:Molded Plastic, UL

Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are represented on Eris website, harmless against all damages.
* No license, express or implied, by estoppels or otherwise, to any intellectual property is granted by this document or by any condu
