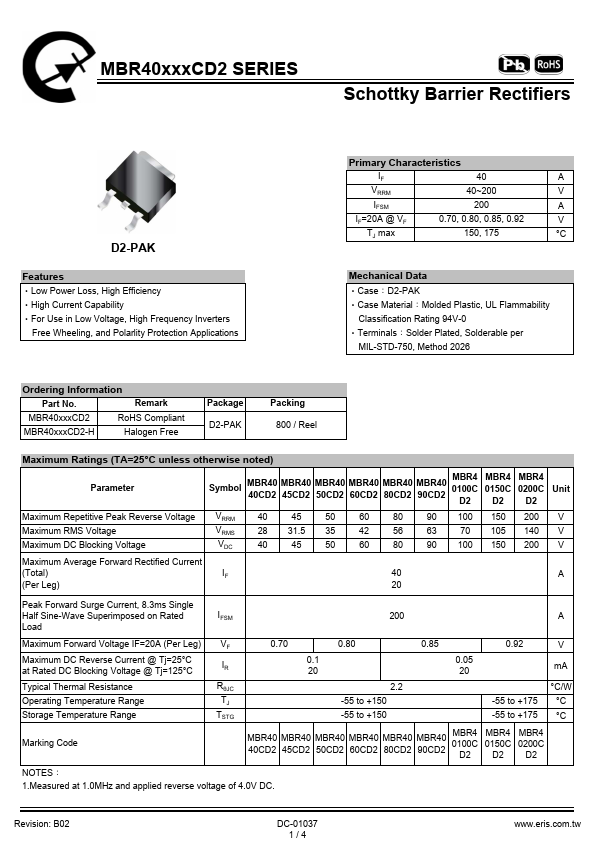

MBR40150CD2
Features
‧Low Power Loss, High Efficiency ‧High Current Capability ‧For Use in Low Voltage, High Frequency Inverters
Free Wheeling, and Polarlity Protection Applications
Primary Characteristics
VRRM
40~200
IFSM
IF=20A @ VF
0.70, 0.80, 0.85, 0.92
TJ max
150, 175
°C
Mechanical Data
‧Case：D2-PAK ‧Case Material：Molded Plastic, UL Flammability
Classification Rating 94V-0 ‧Terminals：Solder Plated, Solderable per
MIL-STD-750, Method 2026
Ordering Information
Part No.
Remark
MBR40xxx CD2
Ro HS pliant
MBR40xxx CD2-H
Halogen Free

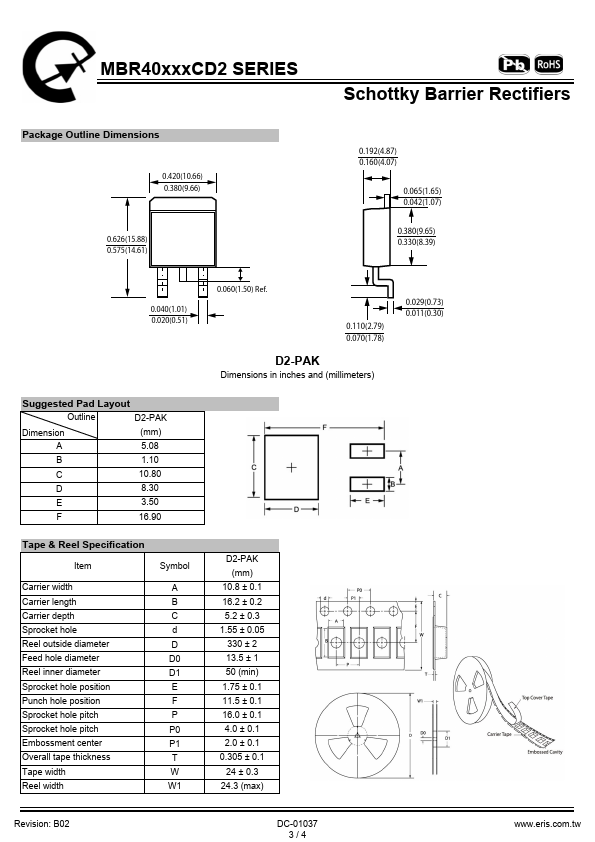

Package D2-PAK
Packing 800 / Reel
Maximum Ratings (TA=25°C unless otherwise noted)
Parameter
Symbol
MBR40 MBR40 MBR40 MBR40 MBR40 MBR40 40CD2 45CD2 50CD2 60CD2 80CD2 90CD2
MBR4 0100C
D2
MBR4 0150C
D2
MBR4...
