MBR40200CD2, MBR4040CD2 Schottky Barrier Rectifiers

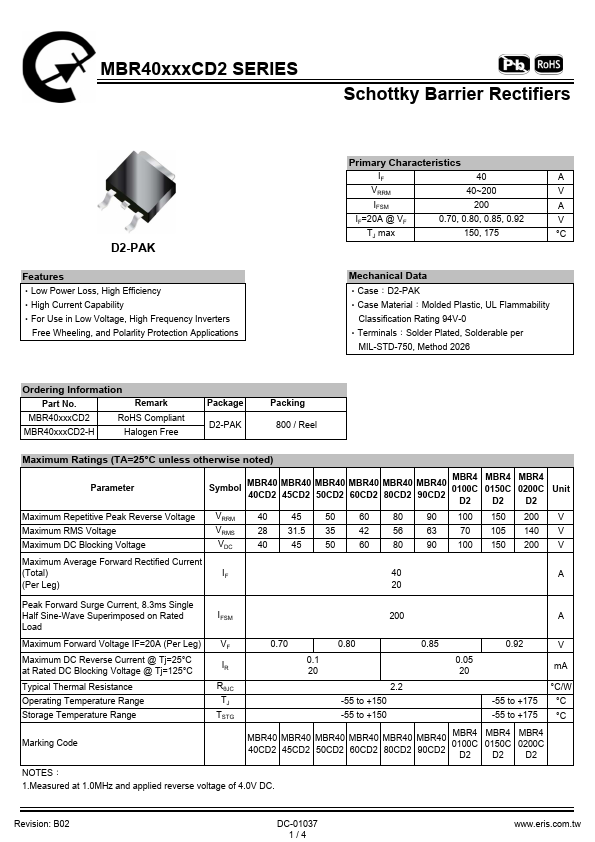

📥 Download Datasheet Datasheet Preview Page 1

Description

MBR40xxxCD2 SERIES Schottky Barrier Rectifiers D2-PAK .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR40200CD2, MBR4040CD2. Please refer to the document for exact specifications by model.

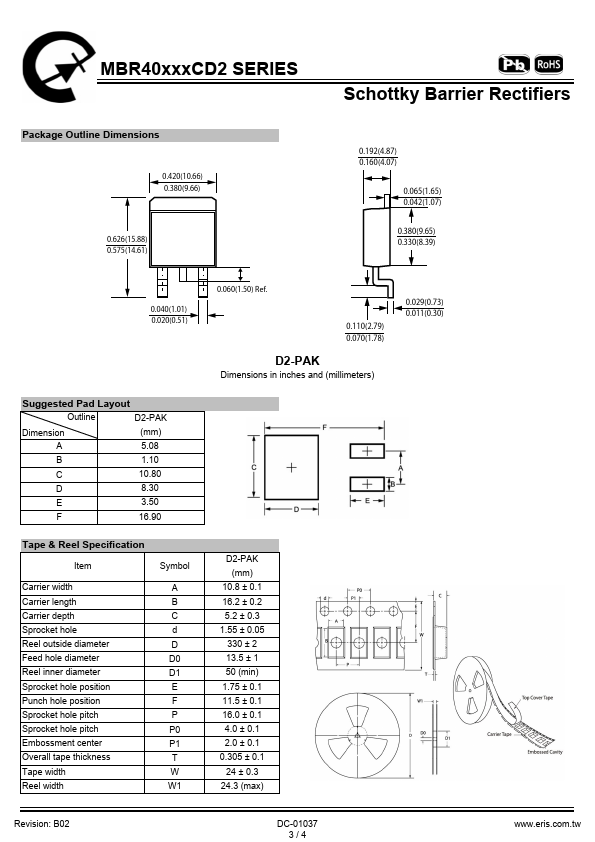

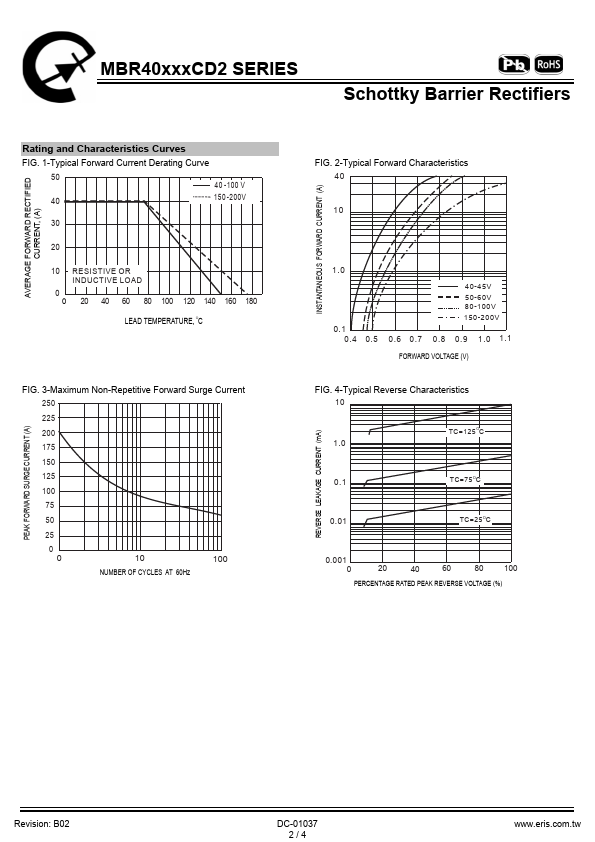

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MBR40200CD2, MBR4040CD2
Manufacturer
Eris
File Size
279.91 KB
Datasheet
MBR4040CD2-Eris.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBR40200CD2, MBR4040CD2.
Please refer to the document for exact specifications by model.

Applications

* Primary Characteristics IF 40 A VRRM 40~200 V IFSM 200 A IF=20A @ VF 0.70, 0.80, 0.85, 0.92 V TJ max 150, 175 °C Mechanical Data ‧Case：D2-PAK ‧Case Material：Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals：Solder Plated, Solderable per MIL-STD-750, Method 2026
