Datasheet Specifications
- Part number
- MBR4040CD2
- Manufacturer
- Eris
- File Size
- 279.91 KB
- Datasheet
- MBR4040CD2-Eris.pdf
- Description
- Schottky Barrier Rectifiers
Description

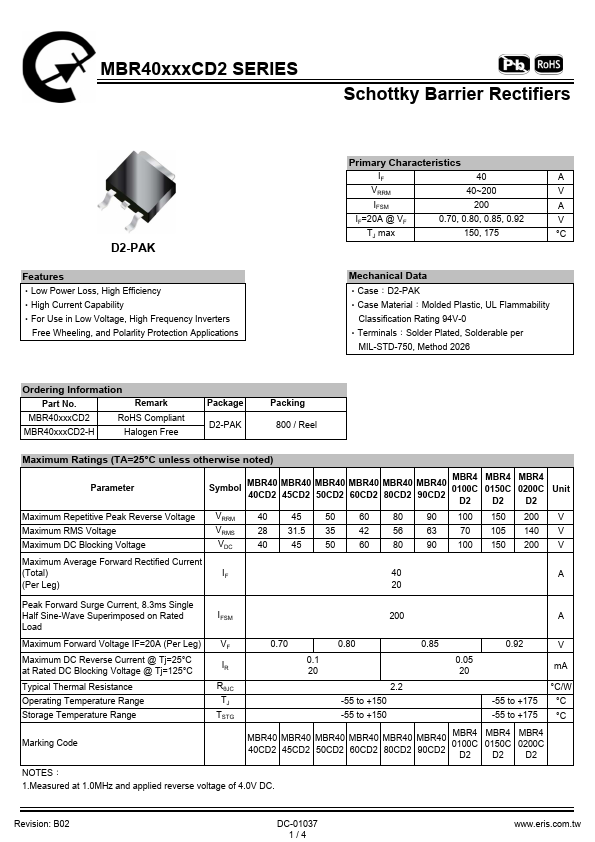

MBR40xxxCD2 SERIES Schottky Barrier Rectifiers D2-PAK .
Applications
* Primary Characteristics IF 40 A VRRM 40~200 V IFSM 200 A IF=20A @ VF 0.70, 0.80, 0.85, 0.92 V TJ max 150, 175 °C Mechanical Data ‧Case：D2-PAK ‧Case Material：Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals：Solder Plated, Solderable per MIL-STD-750, Method 2026MBR4040CD2 Distributors
