MBR4045CD2 - Schottky Barrier Rectifiers

This page provides the datasheet information for the MBR4045CD2, a member of the MBR4040CD2 Schottky Barrier Rectifiers family.

Datasheet Summary

Features

  • ‧Low Power Loss, High Efficiency ‧High Current Capability ‧For Use in Low Voltage, High Frequency Inverters Free Wheeling, and Polarlity Protection.

📥 Download Datasheet

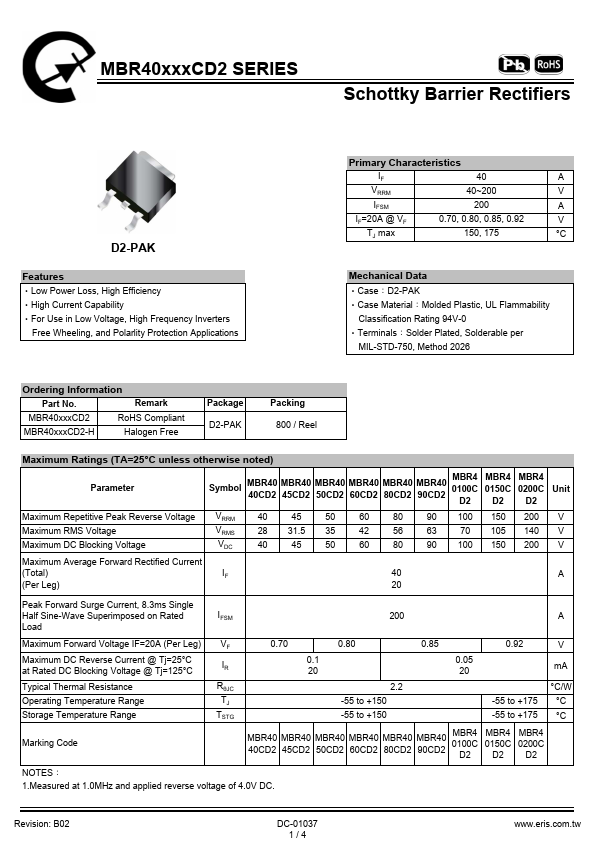

Datasheet preview – MBR4045CD2

Datasheet Details

Part number MBR4045CD2
Manufacturer Eris
File Size 279.91 KB
Description Schottky Barrier Rectifiers
Datasheet download datasheet MBR4045CD2 Datasheet

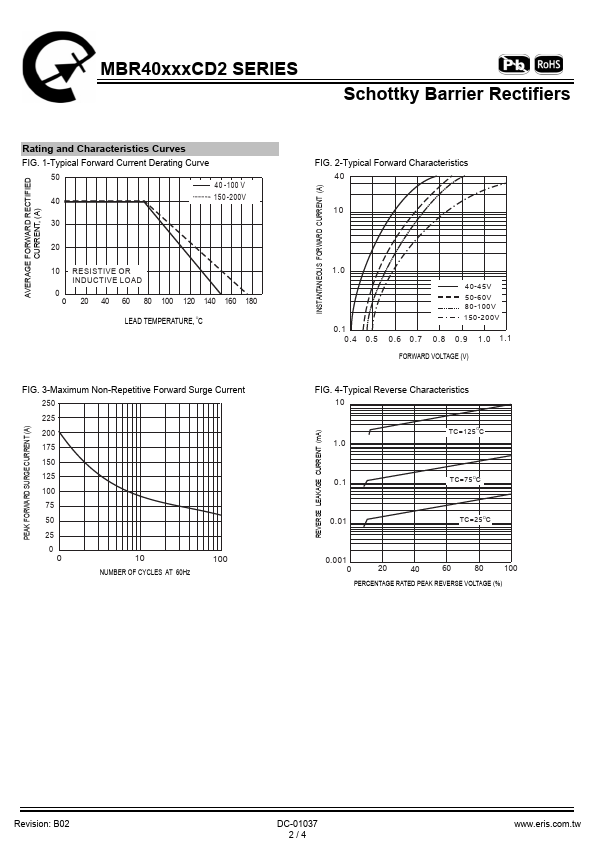

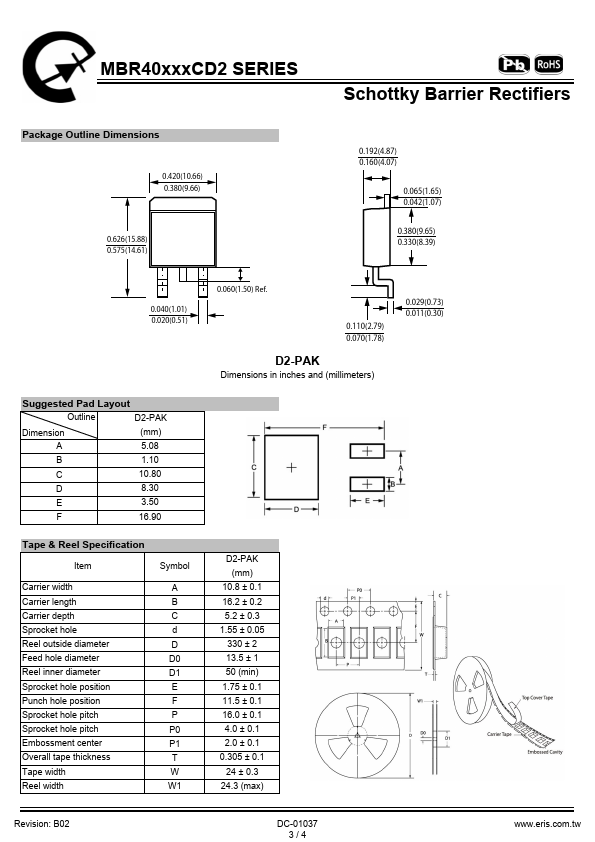

Additional preview pages of the MBR4045CD2 datasheet.

📁 Similar Datasheet

  • MBR4045C - 40A SCHOTTKY BARRIER RECTIFIER (UTC)
  • MBR4045CT - Schottky Barrier Rectifier (INCHANGE)
  • MBR4045CT - SCHOTTKY RECTIFIER (SMC-DIODE)
  • MBR4045CT - SCHOTTKY RECTIFIER (International Rectifier)
  • MBR4045CT - 40A SCHOTTKY BARRIER RECTIFIERS (Frontier Electronics)
  • MBR4045CT-1 - SCHOTTKY RECTIFIER (International Rectifier)
  • MBR4045CT-1PBF - SCHOTTKY RECTIFIER (International Rectifier)
  • MBR4045CTPBF - SCHOTTKY RECTIFIER (International Rectifier)
  • MBR4045 - SWITCHMODE Power Rectifier (Motorola)
  • MBR4045 - 40A SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
Other Datasheets by Eris

Full PDF Text Transcription

Click to expand full text
MBR40xxxCD2 SERIES Schottky Barrier Rectifiers D2-PAK Features ‧Low Power Loss, High Efficiency ‧High Current Capability ‧For Use in Low Voltage, High Frequency Inverters Free Wheeling, and Polarlity Protection Applications Primary Characteristics IF 40 A VRRM 40~200 V IFSM 200 A IF=20A @ VF 0.70, 0.80, 0.85, 0.92 V TJ max 150, 175 °C Mechanical Data ‧Case：D2-PAK ‧Case Material：Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals：Solder Plated, Solderable per MIL-STD-750, Method 2026 Ordering Information Part No.
