S5GC General Purpose Rectifiers

S5GC Description

S5AC thru S5TC General Purpose Rectifiers Glass Passivation Junction DO-214AB(SMC) .

S5GC Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Primary Characteristics IF 5 VRRM 50~1300 IFSM 125 VF 1.15 TJ max 150 A V A V °C Mechanical Data ‧Cases: DO-214AB(SMC) ‧Case Material: Molded Plastic. UL Flammability C

📥 Download Datasheet

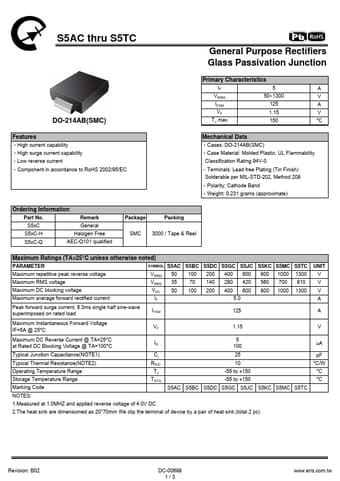

Preview of S5GC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S5GC
Manufacturer
Eris
File Size
350.28 KB
Datasheet
S5GC-Eris.pdf
Description
General Purpose Rectifiers
