S5JC General Purpose Rectifiers

Eris

S5JC Description

S5AC thru S5TC General Purpose Rectifiers Glass Passivation Junction DO-214AB(SMC) .

S5JC Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Primary Characteristics IF 5 VRRM 50~1300 IFSM 125 VF 1.15 TJ max 150 A V A V °C Mechanical Data ‧Cases: DO-214AB(SMC) ‧Case Material: Molded Plastic. UL Flammability C

📥 Download Datasheet

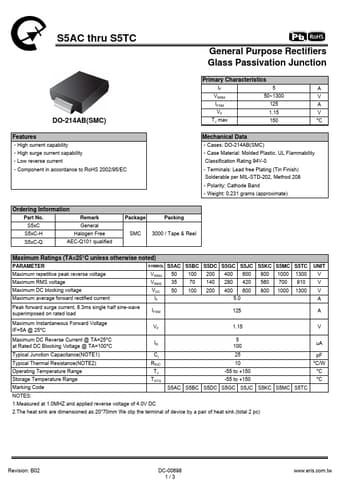

S5JC Datasheet Preview — Preview of S5JC PDF

Datasheet Details

Part number: S5JC
Manufacturer: Eris
File Size: 350.28 KB
Datasheet: S5JC-Eris.pdf
Description: General Purpose Rectifiers
