SM1050B, SM1020B - Schottky Barrier Rectifiers

SM1050B Description

SM1020B thru SM10200B Schottky Barrier Rectifiers 0.086 (2.20) 0.077 (1.95) 0.155 (3.94) 0.130 (3.30) 0.180 (4.57) 0.160 (4.06) 0.096 (2.44) 0.084.

SM1050B Features

* ‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case: DO-214AA (SMB) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Te

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM1050B, SM1020B. Please refer to the document for exact specifications by model.

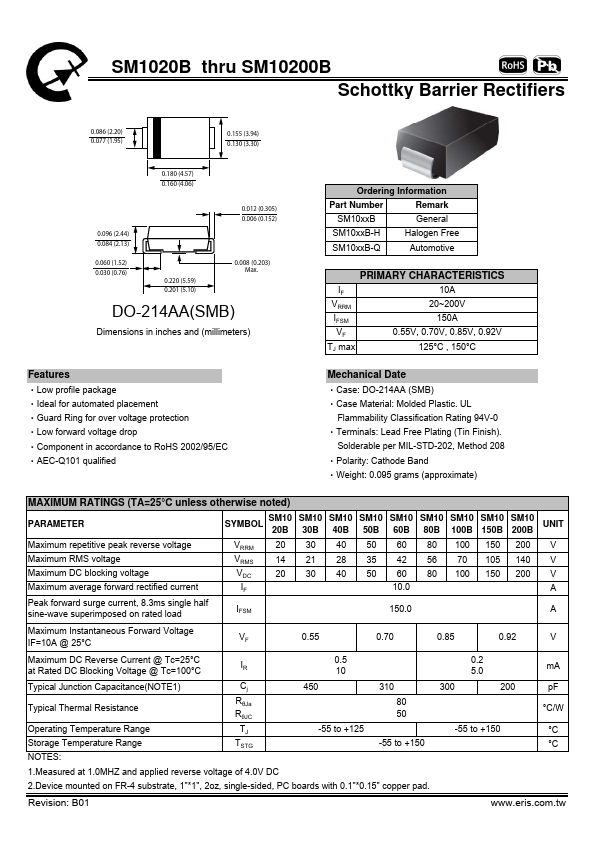

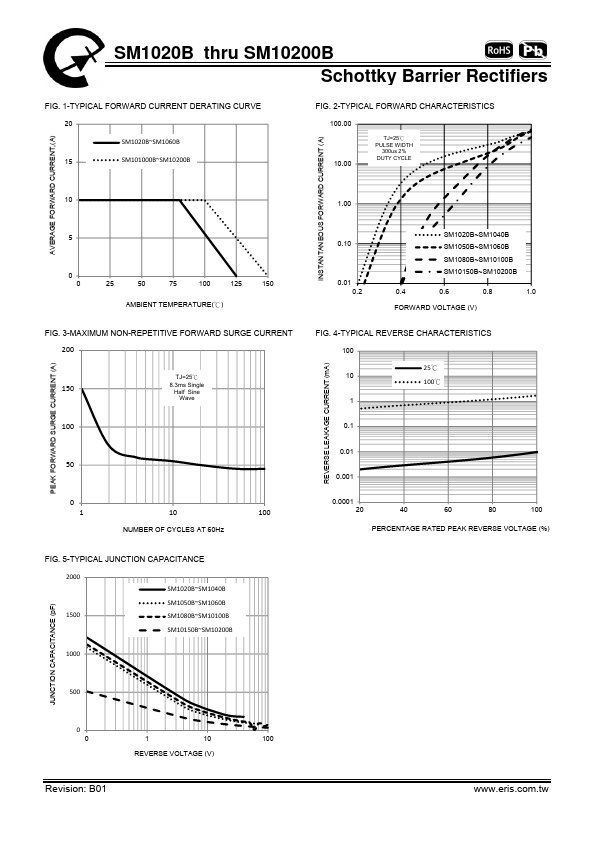

datasheet Preview Page 2

Datasheet Details

Part number
SM1050B, SM1020B
Manufacturer
Eris
File Size
187.73 KB
Datasheet
SM1020B-Eris.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SM1050B, SM1020B.
Please refer to the document for exact specifications by model.
