SM1100B - Schottky Barrier Rectifiers

Product Overview

Eris

📥 Download Datasheet

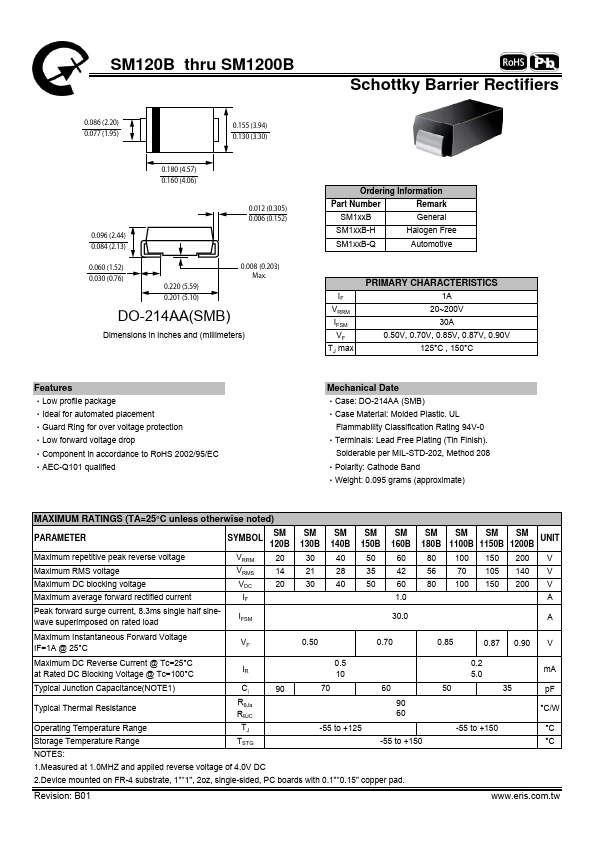

SM1100B Schottky Barrier Rectifiers by Eris - Datasheet Preview — Datasheet preview – SM1100B

Datasheet Details

Part number	SM1100B
Manufacturer	Eris
File Size	190.88 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM1100B Datasheet
Note	This datasheet PDF includes multiple part numbers: SM1100B, SM120B. Please refer to the document for exact specifications by model.

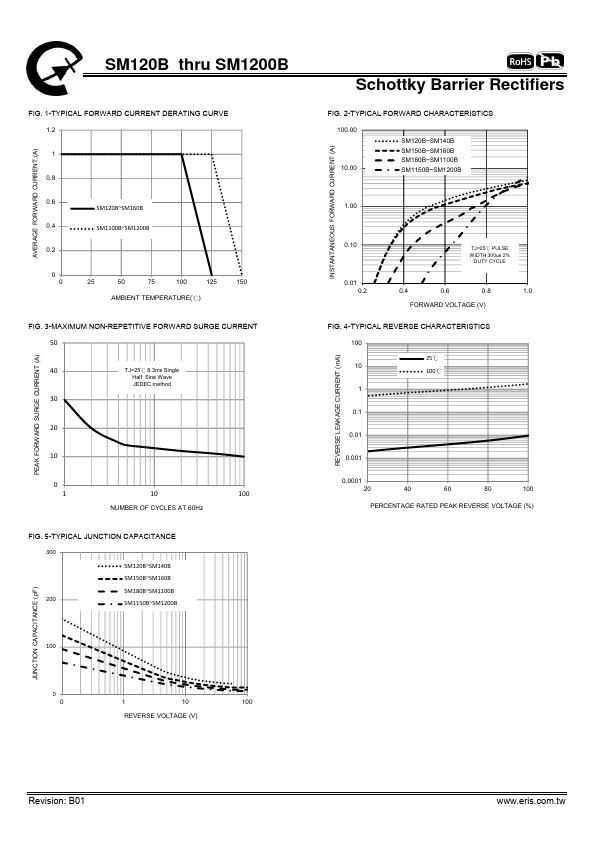

Additional preview pages of the SM1100B datasheet.

Product details

Features

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case: DO-214AA (SMB) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.095 grams (approximate).
