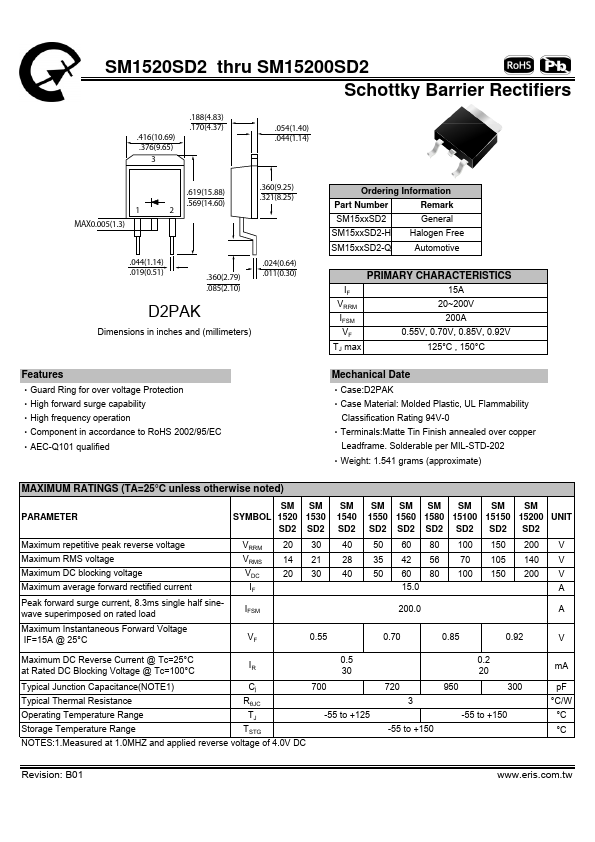

SM15100SD2
Features
‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧ponent in accordance to Ro HS 2002/95/EC ‧AEC-Q101 qualified
Ordering Information
Part Number SM15xx SD2
Remark General
SM15xx SD2-H Halogen Free
SM15xx SD2-Q
Automotive
PRIMARY CHARACTERISTICS
15A
VRRM
20~200V
IFSM
200A
0.55V, 0.70V, 0.85V, 0.92V
TJ max
125°C , 150°C
Mechanical Date
‧Case:D2PAK ‧Case Material: Molded Plastic, UL Flammability
Classification Rating 94V-0 ‧Terminals:Matte Tin Finish annealed over copper
Leadframe. Solderable per MIL-STD-202 ‧Weight: 1.541 grams (approximate)

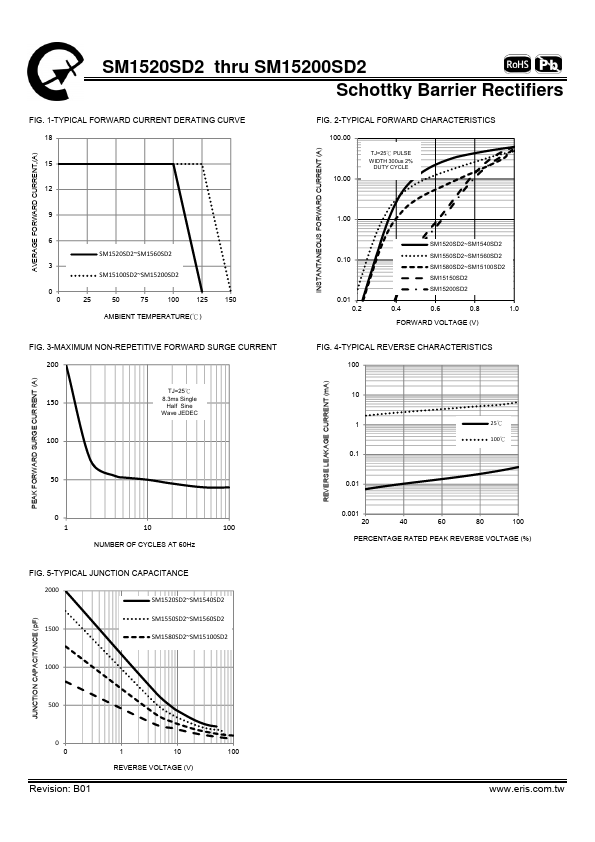

MAXIMUM RATINGS (TA=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Peak forward surge current, 8.3ms single half sinewave superimposed on rated load Maximum Instantaneous Forward Voltage IF=15A @ 25°C
SM SYMBOL 1520
SD2
VRRM
VRMS...
