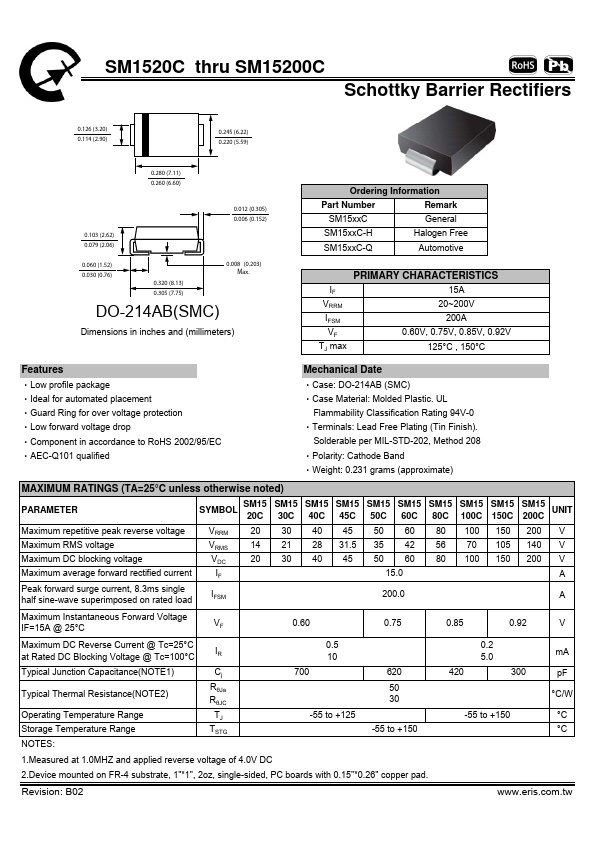

SM1530C
Features
‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧ponent in accordance to Ro HS 2002/95/EC ‧AEC-Q101 qualified
Mechanical Date
‧Case: DO-214AB (SMC) ‧Case Material: Molded Plastic. UL
Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish).
Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.231 grams (approximate)
MAXIMUM RATINGS (TA=25°C unless otherwise noted)
PARAMETER
SYMBOL
SM15 20C
SM15 30C
SM15 40C
SM15 45C
SM15 50C
SM15 60C
SM15 80C
SM15 100C
SM15 150C
SM15 200C
UNIT
Maximum repetitive peak reverse voltage
VRRM
20 30 40 45 50 60 80 100 150 200 V
Maximum RMS voltage
VRMS
21 28 31.5 35
70 105 140 V
Maximum DC blocking voltage
20 30 40 45 50 60 80 100 150 200 V
Maximum average forward rectified current
Peak forward surge current, 8.3ms single half sine-wave superimposed on rated...
